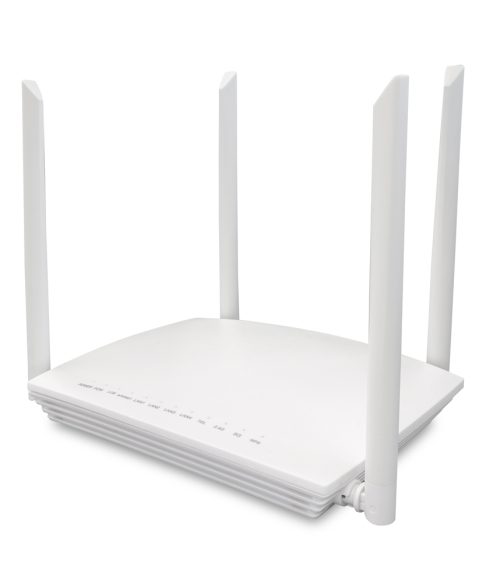

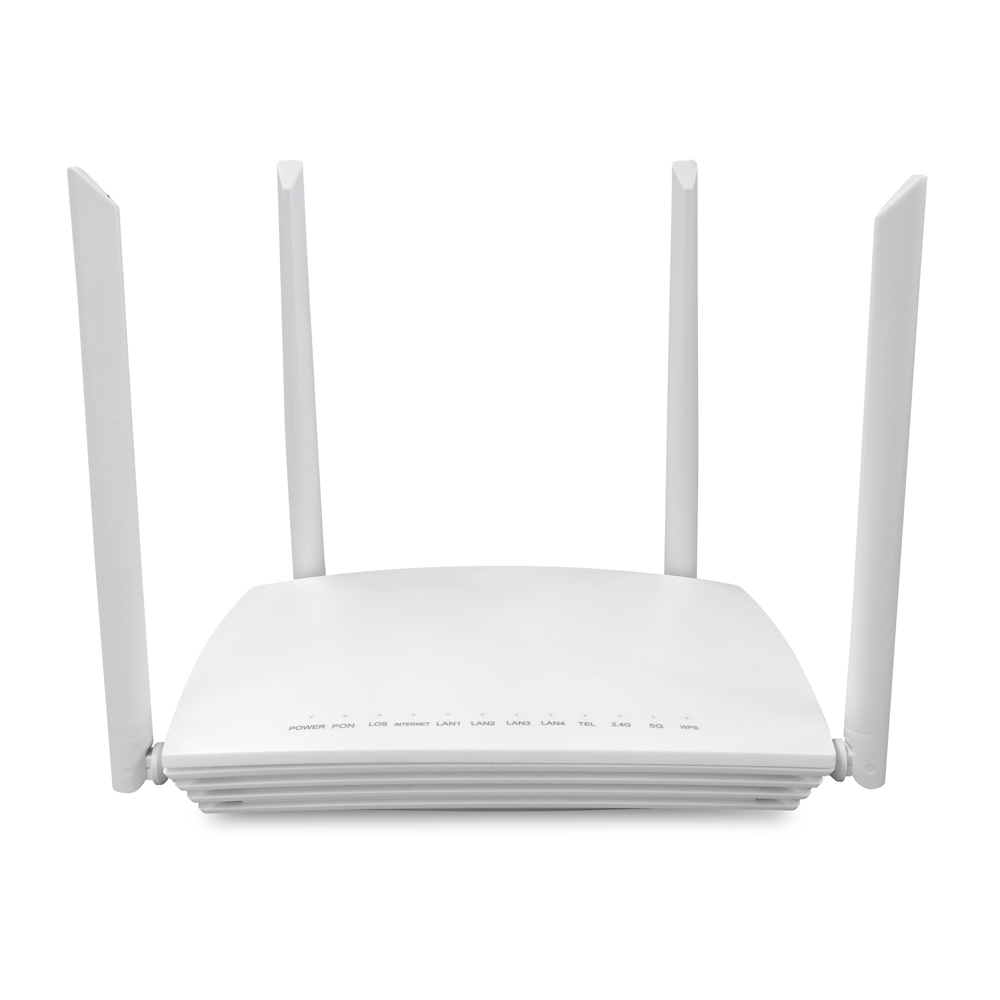

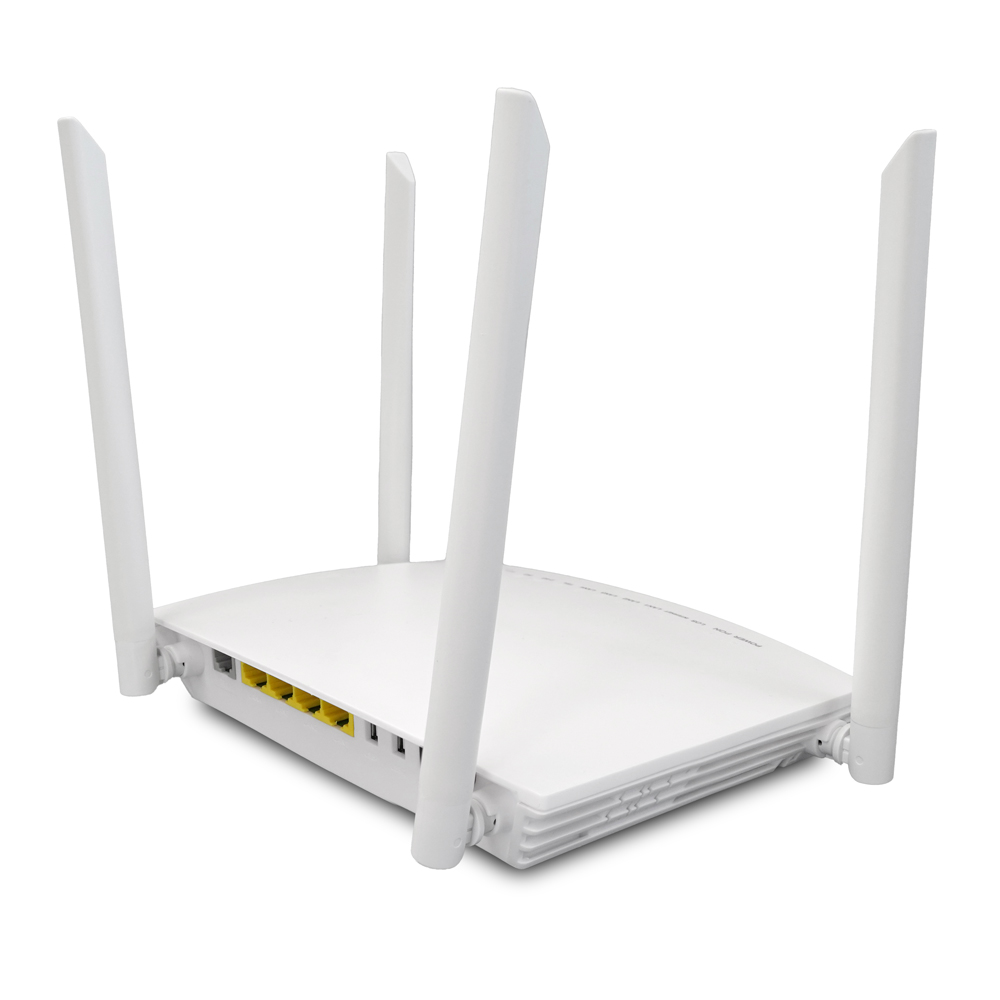

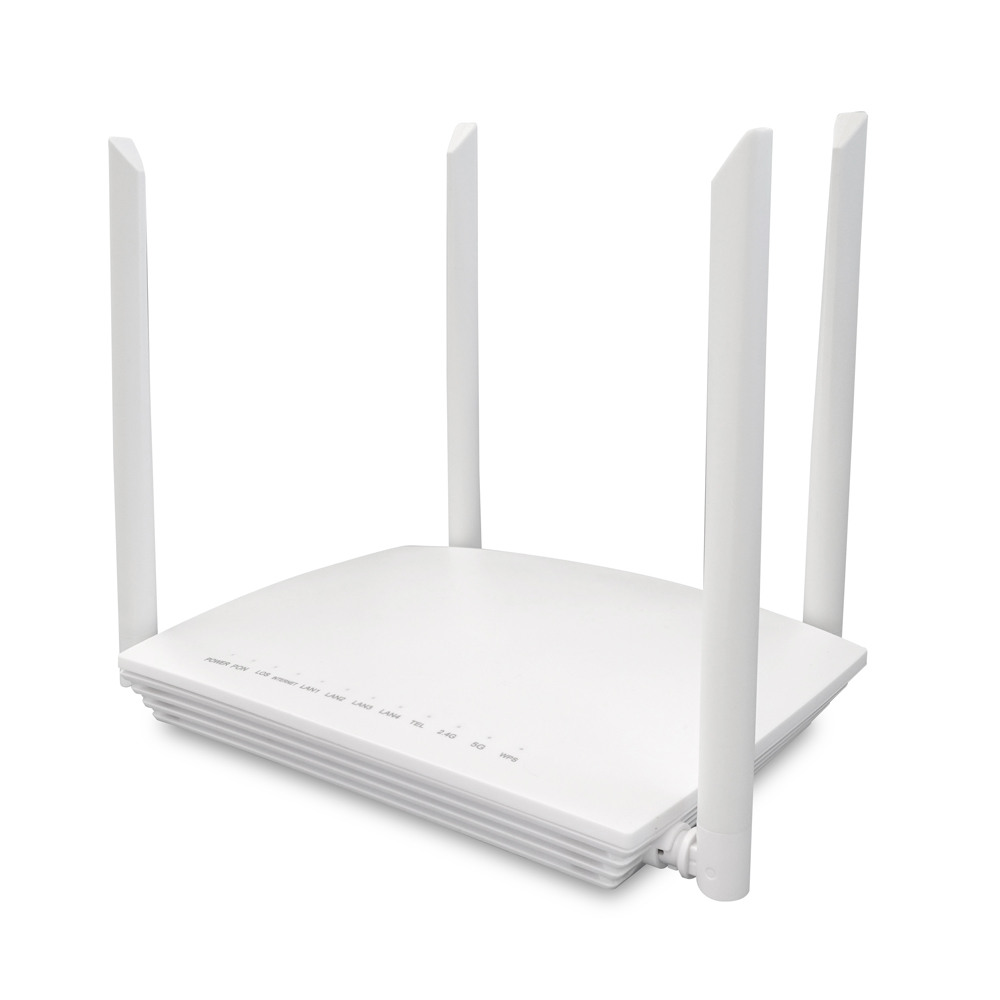

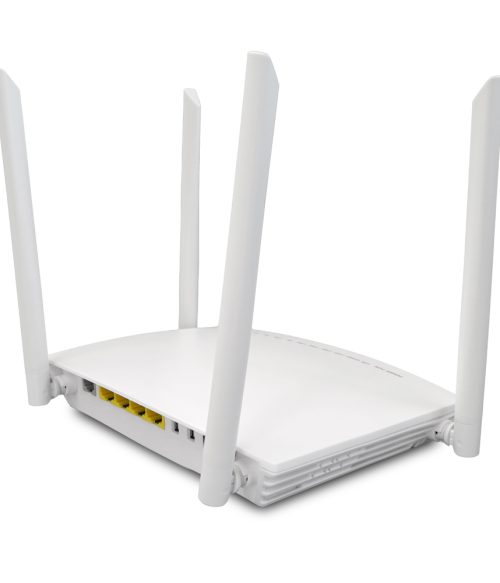

4 Ports GEPon GPon EPon XPon 2.4G 5G Dual Band AC1200 Fiber Optical Broadband Router Wifi Modem 4GE ONU Machine ONT 4 Antennas
G5412-A4 is a 4GE Wifi ONU GPON EPON dual-mode adaptive XPon ONT designed by Hosecom. The upstream speed of G5412-A4 is 1.25Gbps, the downstream speed is 2.5Gbps, and the transmission distance can reach 20Km. This product provides two USB 2.0 interfaces, it adopts 4 Gigabit Ethernet ports, 1 VoIP port. G5412-A4 adopts dual-band AC1200 Wifi solution, providing a maximum wifi connection speed of 1200Mbps. It can adapt to mainstream brands of OLT equipment on the market. If you are interested in this product, please contact us.
Product Description
4GE Wifi ONU G5412-A4 Main features
Supports 802.11ac, Compatible with 802.11 b/g/n/ac products
Dual band – for combined wireless speeds of up to 1200Mbps at 2.4GHz and 5GHz band concurrently
Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km
Fiber access and gigabit port provide incredibly fast transfer speeds
Supports OMCI (ONT Management Control Interface) remote management
TDM inner transmission, support Native TDM type and CES over GEM
Pass though T-CONT-GEM port to be in progress and multiple-access BDA and QoS manage.
Easy Setup Assistant provides quick & hassle free installation
Dual band – for combined wireless speeds of up to 1200Mbps at 2.4GHz and 5GHz band concurrently
Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km
Fiber access and gigabit port provide incredibly fast transfer speeds
Supports OMCI (ONT Management Control Interface) remote management
TDM inner transmission, support Native TDM type and CES over GEM
Pass though T-CONT-GEM port to be in progress and multiple-access BDA and QoS manage.
Easy Setup Assistant provides quick & hassle free installation
Specification
|
General
|
||
|
Equipment name
|
Dual band WiFi5 XPON ONU
|
|
|
Device mode
|
G5412-A4
|
|
|
Type and quantity of standard user ports
|
4*GE LAN+1*POTS+1*WLAN（Dual band 802.11AC）+2*USB2.0
|
|
|
RAM
|
512MByte
|
|
|
FLASH
|
256MByte
|
|
|
Distance
|
20Km Max
|
|
|
Data Rates
|
Upstream:1.25Gbps, Downstream:2.5Gbps
|
|
|
Wireless Standards
|
IEEE802.11a/n/ac,5GHz 867Mbps IEEE802.11b/g/n,2.4GHz 300Mbps
|
|
|
Operation Frequency
|
2.4GHz and 5GHz
|
|
|
Wireless Security
|
WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
|
|
|
VOIP Standards
|
SIP ITU-T G.729/G.722/G.711a/G.711
|
|
|
Hardware
|
||
|

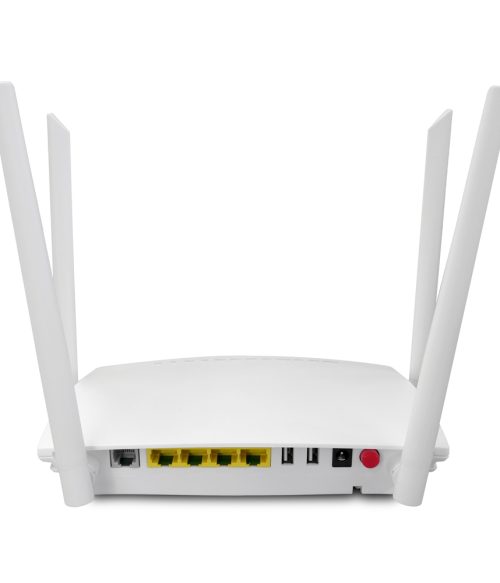

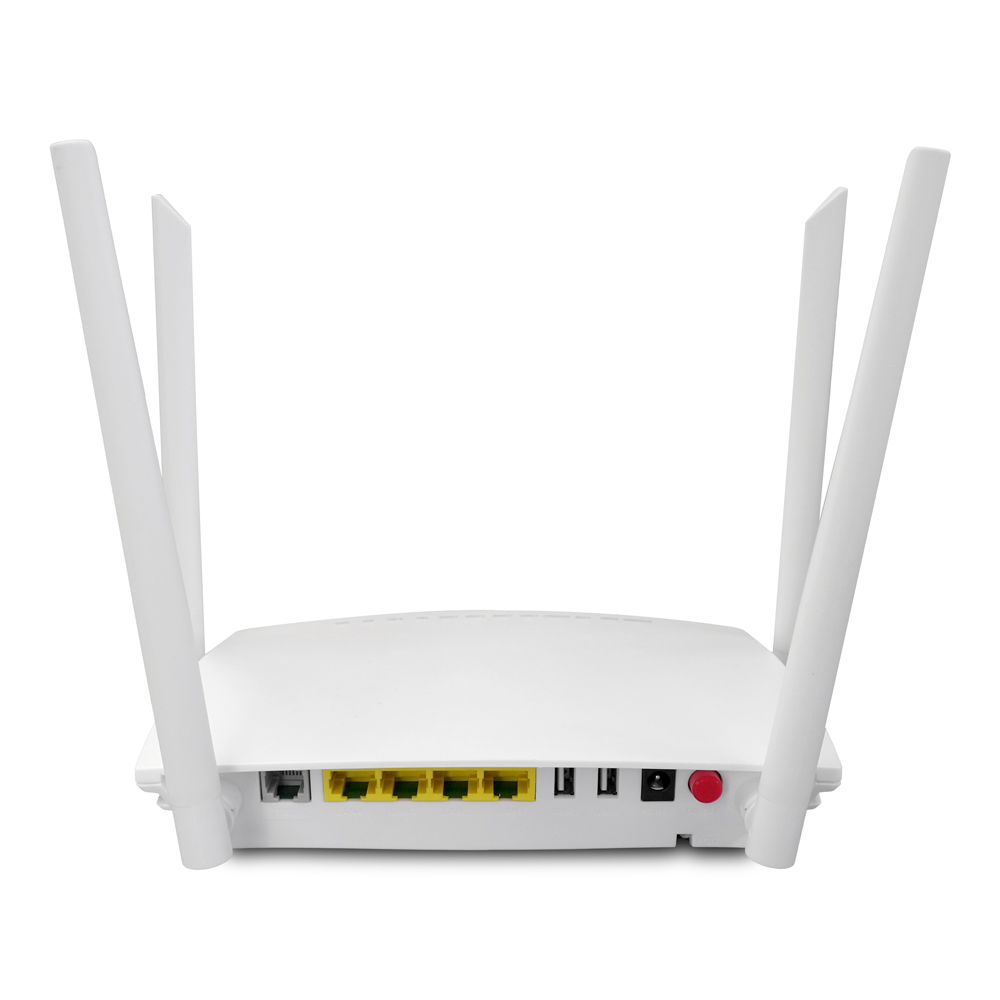

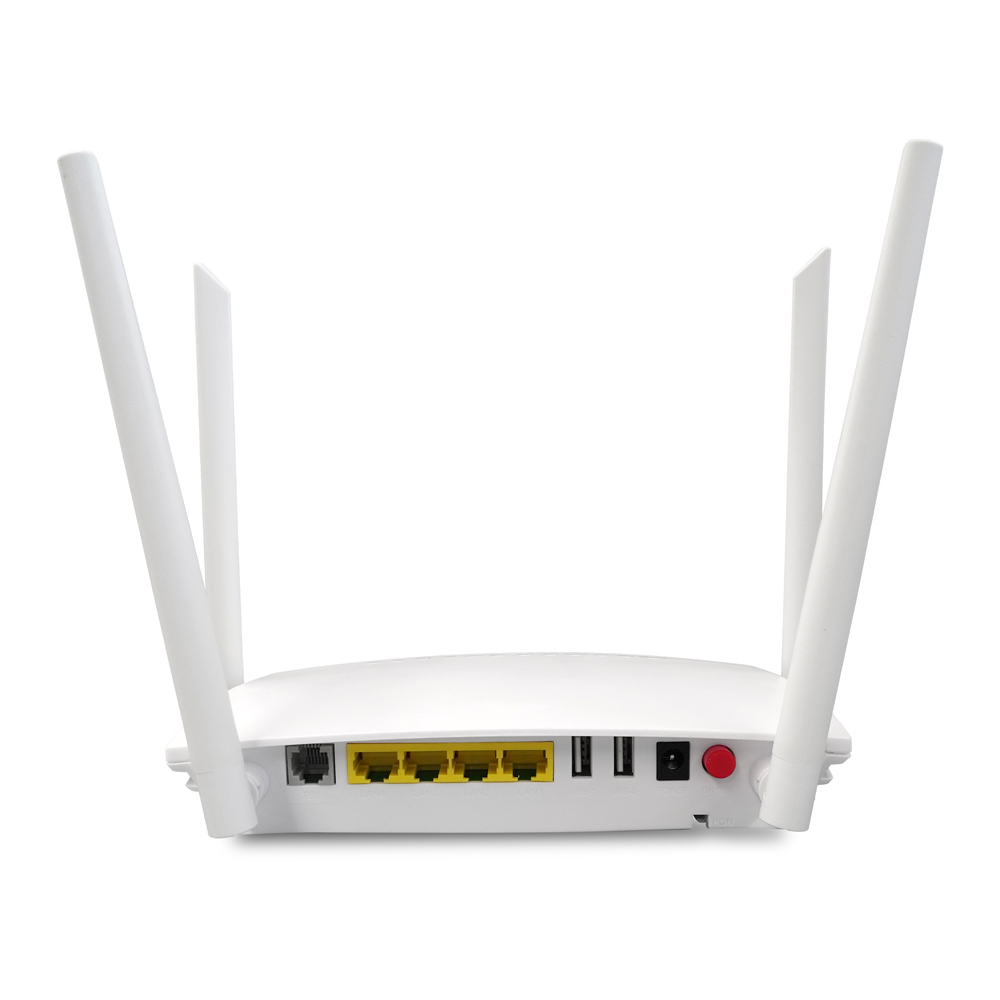

Interfaces
|
1 x SC/APC XPON Port
|
|
|
4 x 10/100/1000Mbps LAN Port
|
||
|
1 x FXS Port
|
||
|
2 x USB 2.0
|
||
|
Buttons
|
Power ON/OFF Button, WPS Button, WLAN Button, Reset Button,
|
|
|
Power Supply
|
DC 12V 1.5A
|
|
|
Aennant
|
4 x 2.4GHz/5GHz 5dBi dual-band external antennas
|
|
|
Dimensions (L * W * H)
|
205mm*135mm*37mm
|
|
|
Software Features
|
||
|
WAN Type
|
PPPoE, Static, DHCP, Bridge
|
|
|
VLAN Type
|
UnTag, Transparency, Tag
|
|
|
WAN Connection
|
Username, Password, Server Name
|
|
|
Quality of Service
|
WMM, Bandwidth Control
|
|
|
Port Forwarding
|
Virtual Server, Port Triggering, UPnP, DMZ
|
|
|
Application
|
DDNS, Advanced NAT, UPnP, Voip, IGMP, Daily Application, DMS, MLD, DNS, Samba
|
|
|
Firewall Security
|
DoS, SPI Firewall
|
|
|
IP Address Filter/MAC Address Filter/Domain Filter
|
||
|
IP and MAC Address Binding
|
||
|
VOIP Features
|
One RJ-11 FXS ports for connecting to analog telephones
|
|
|
Call forwarding, Call waiting, Call block, 3-way conference call, etc.
|
||
|
Management
|
Access Control
|
|
|
Local Management
|
||
|
Remote Management
|
||
|
Internet Protocol
|
IPv4, IPv6
|
|
|
Environment
|
||
|
Operating Temperature
|
0°C~40°C (32°F~104°F)
|
|
|
Storage Temperature
|
-40°C~70°C (-40°F~158°F)
|
|
|
Relative Humidity
|
10%~90%, non-condensing
|
|
|
Storage Humidity
|
5%~95%, non-condensing
|
|
|
Package Contents
|
||
|
Package Contents
|
1 x XPON ONU
|
|
|
1 x Power Adapter
|
||
