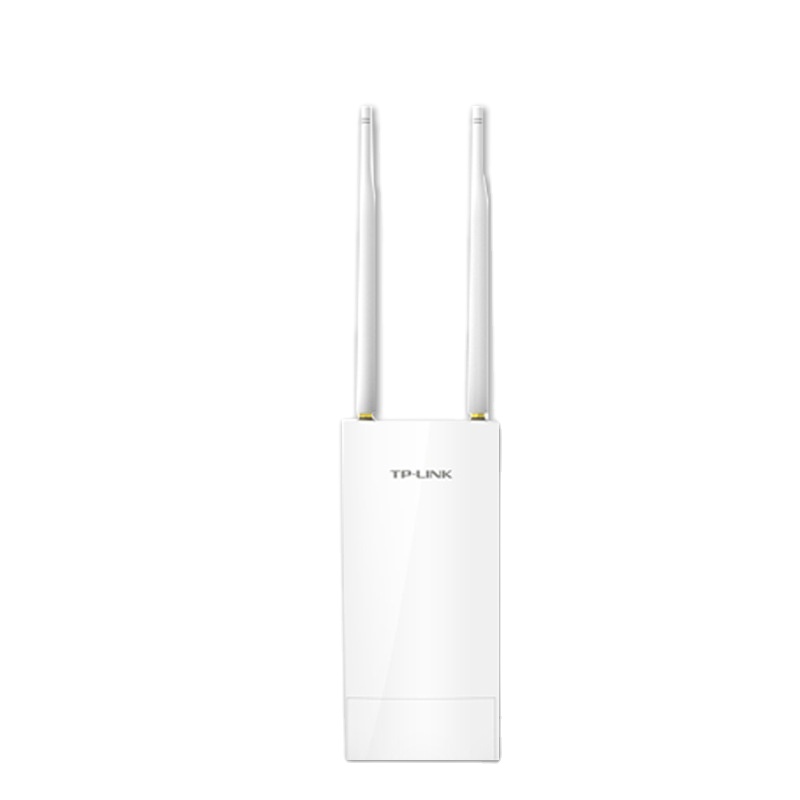

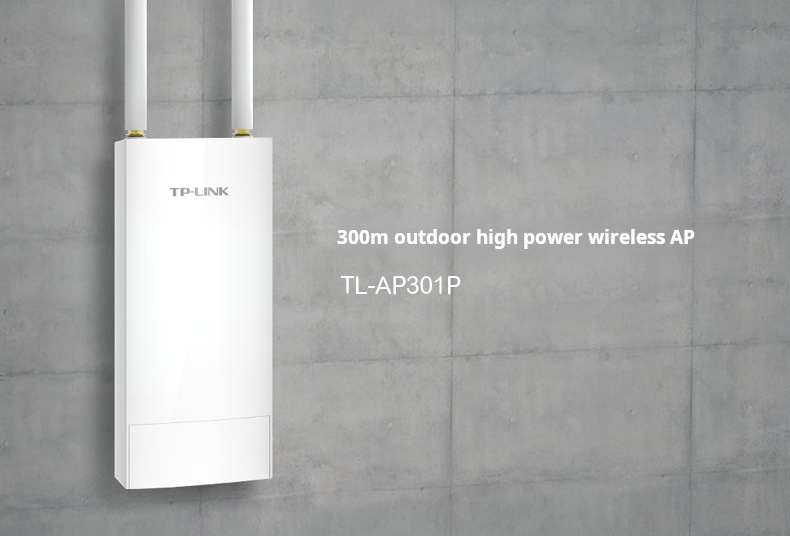

| Product model | TL-AP301P |
| Installation method | Rod/wall-mounted installation |
| Measurement | 209*95*43mm |
| Wireless | Working frequency band: 2.4GHz-2.483GHz (China) |
| Wireless rate: 300Mbps | |
| Port | 1 10/100Mbps RJ45 port |

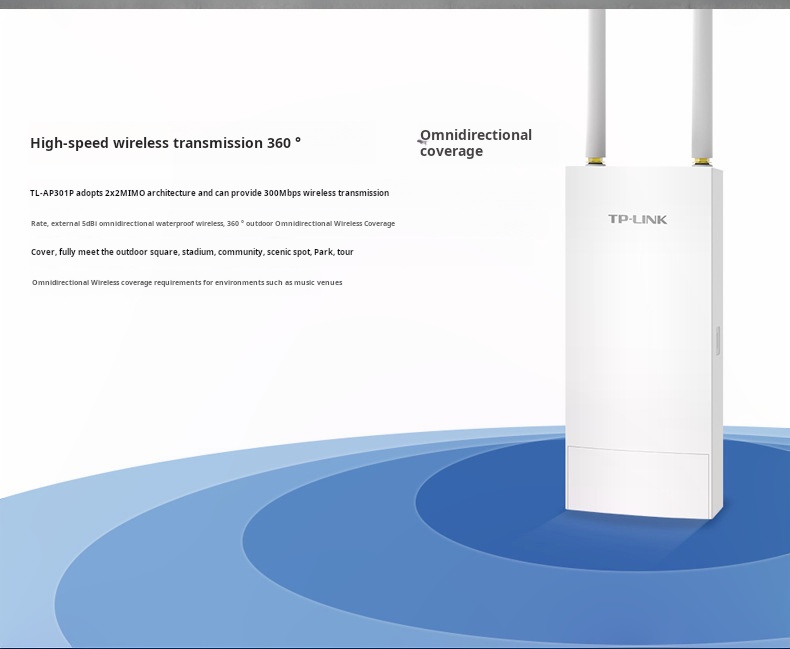

| Aerial | External 5dBi omni-way removable waterproof antenna |
| Antenna coverage angle | 360° |
| Pilot lamp | 1 system indicator light |
| Button | 1 RESET button |
| 1 FAT/FIT mode toggle switch | |
| Power supply | 24VDC/0.7A Passive PoE power supply, power supply distance up to 60M |
| Manage | FIT AP mode: unified management by TP-LINK wireless controller (AC) |
| FAT AP mode: independent web page management | |
| Environmental protection | ASA engineering plastic shell, IP65 grade dustproof and waterproof |
| Usage environment | Operating temperature: -30℃~70℃ |
| Working humidity: 10%~90%RH non-condensing | |
| Storage temperature: -40℃~70℃ | |
| Storage humidity: 5%~90%RH non-condensing | |
| Software specifications (FAT AP mode) | |
| Wireless function | SSID Broadcast: Support |
| Number of SSIDs: 8 (Chinese SSIDs are supported) | |
| Network type: visitor network, employee network | |
| Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK | |
| User isolation: wireless network isolation, AP internal isolation | |
| Wireless MAC address filtering: support whitelist (50) | |
| VLAN Settings: Support SSID and Tag VLAN Binding | |

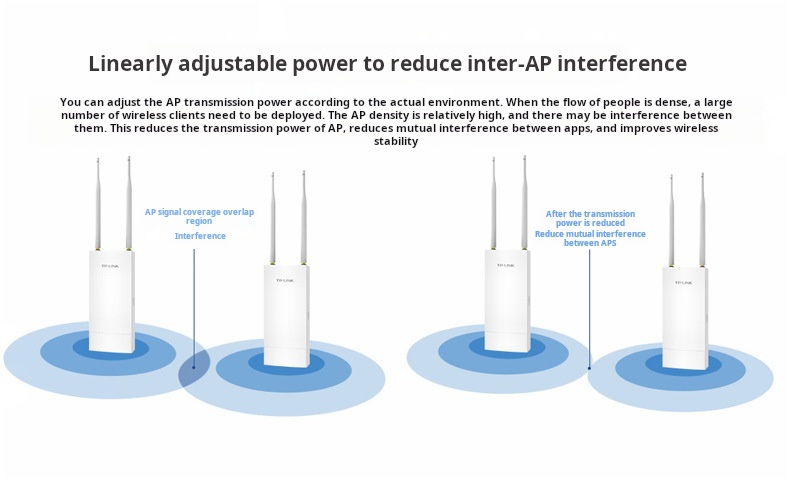

| Transmission power setting: support 1dBm linear adjustment | |
| WDS function: support | |
| Limit on the number of wireless clients: support | |
| QoS: WMM | |
| Kick out weak signal equipment and prohibit access to weak signal equipment: support | |
| Maximum number of associated clients | 100 |
| System management | Equipment management: full Chinese WEB management |
| System Log: Support | |
| Restore factory settings: support | |
| Backup configuration: support | |
| Import Configuration: Support | |
| Software upgrade: support | |
| Ping Watchdog: Support |
