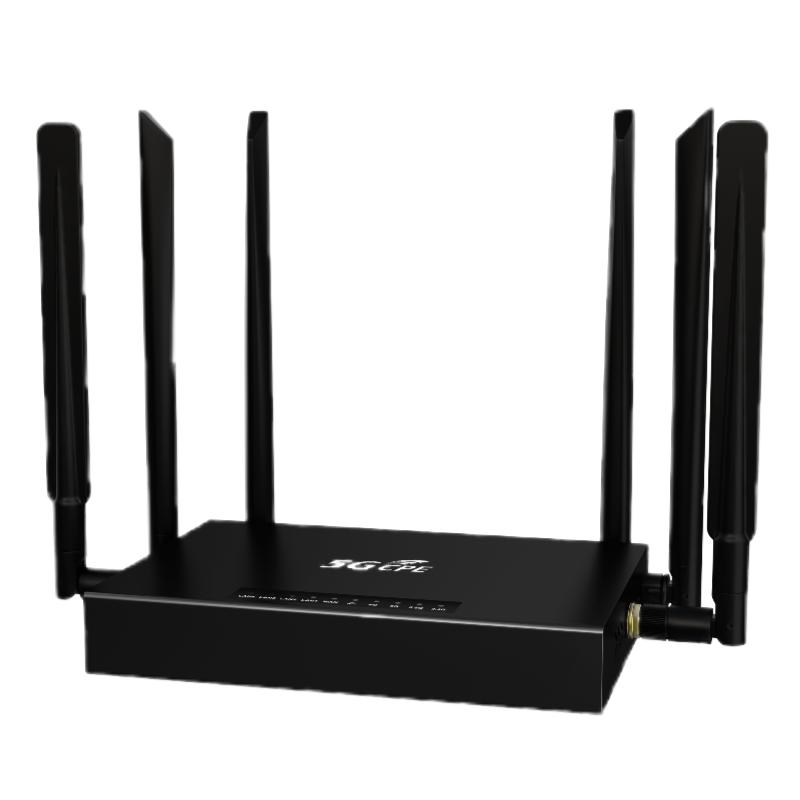

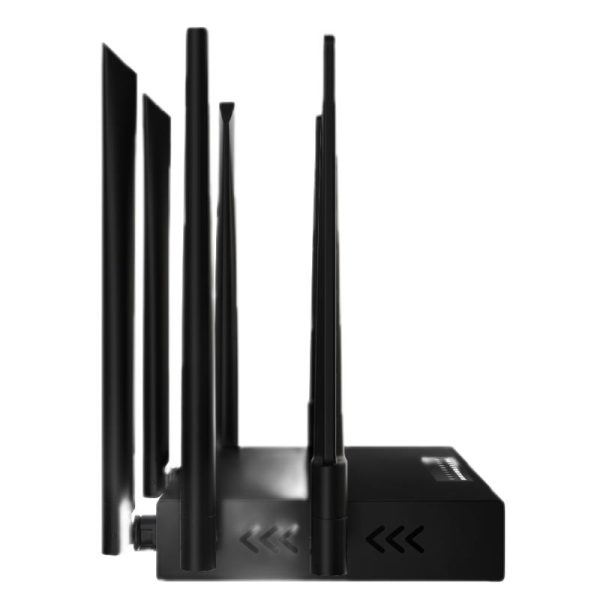

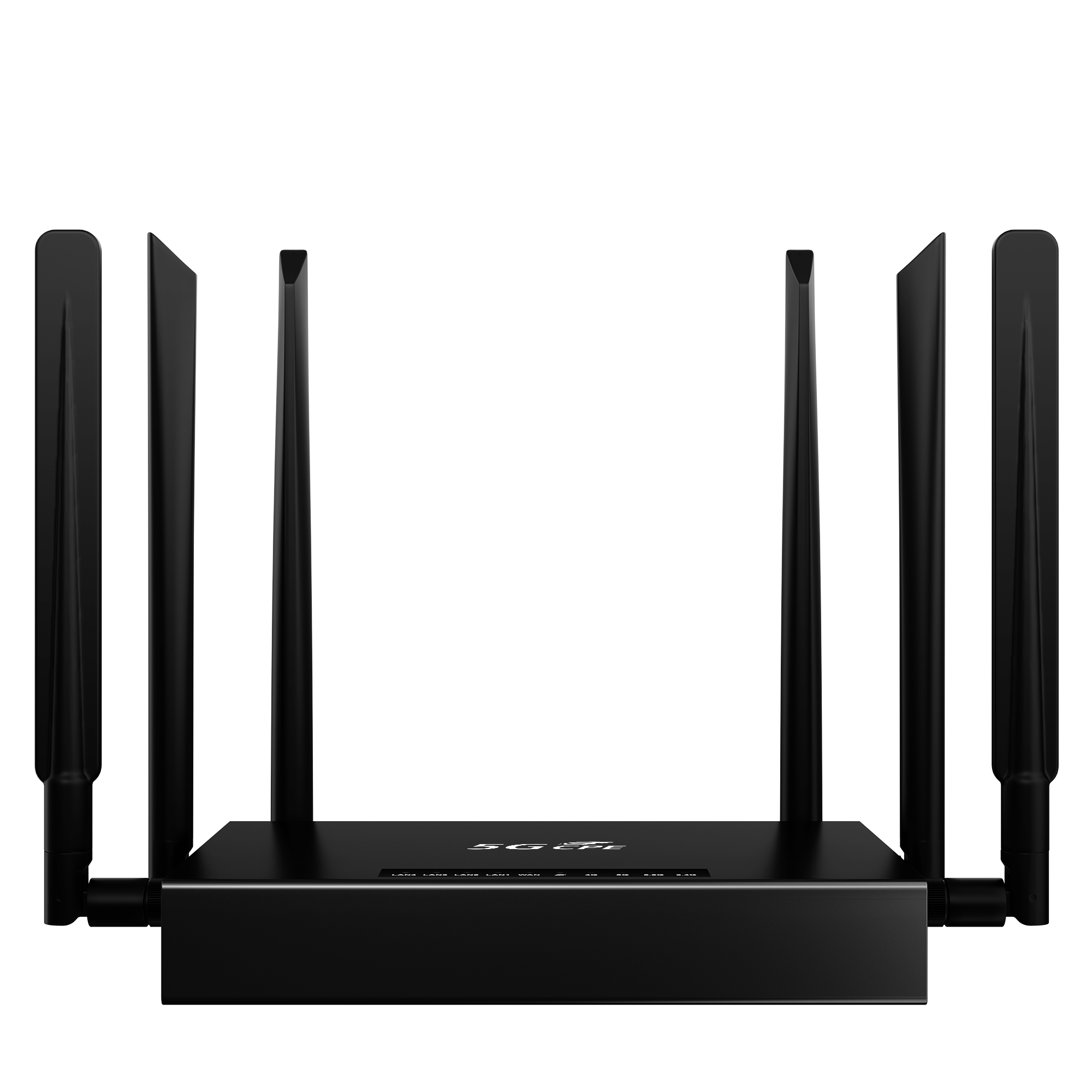

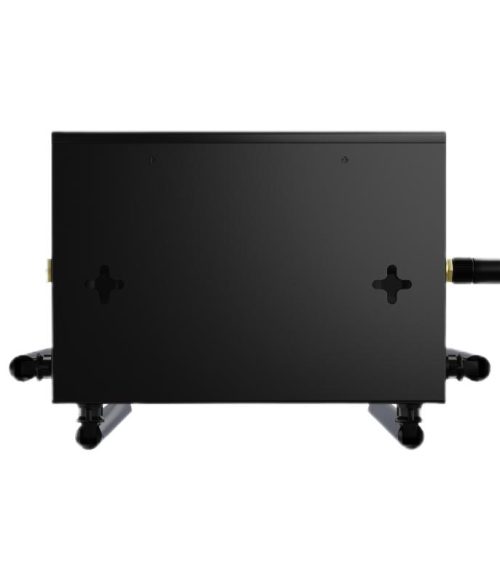

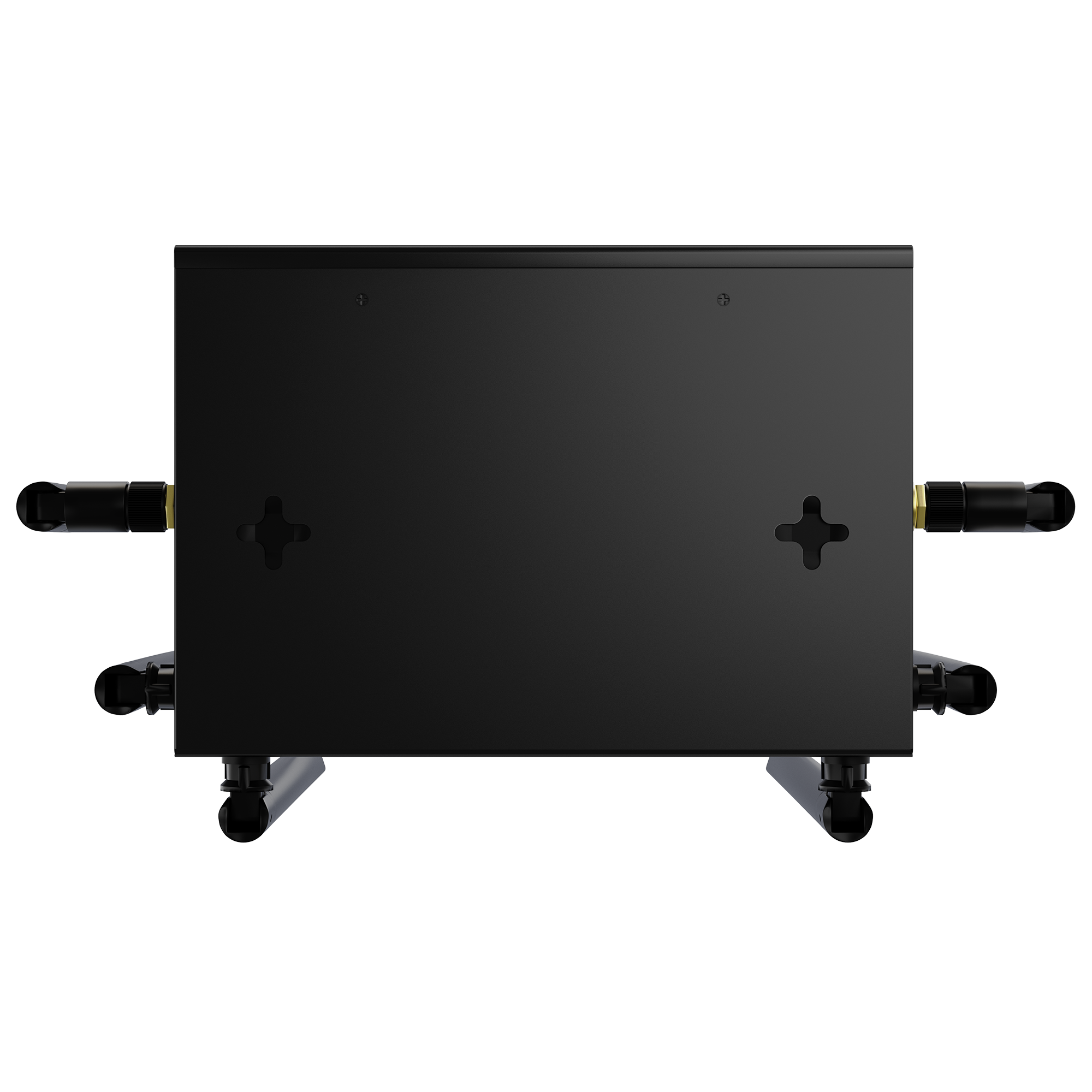

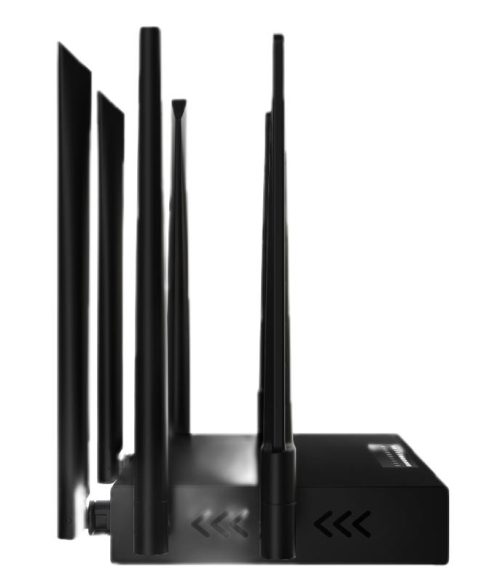

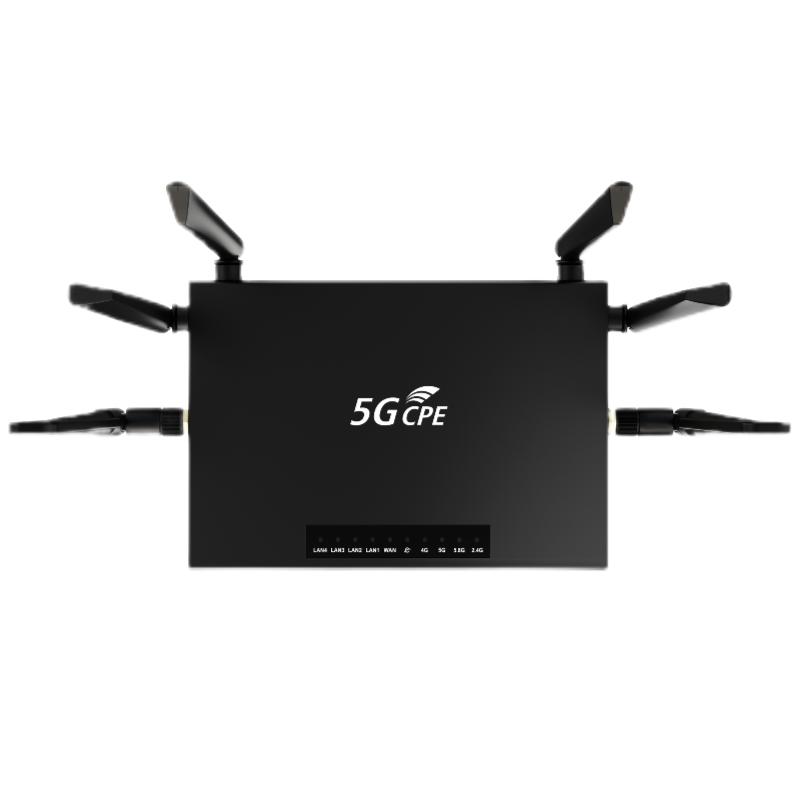

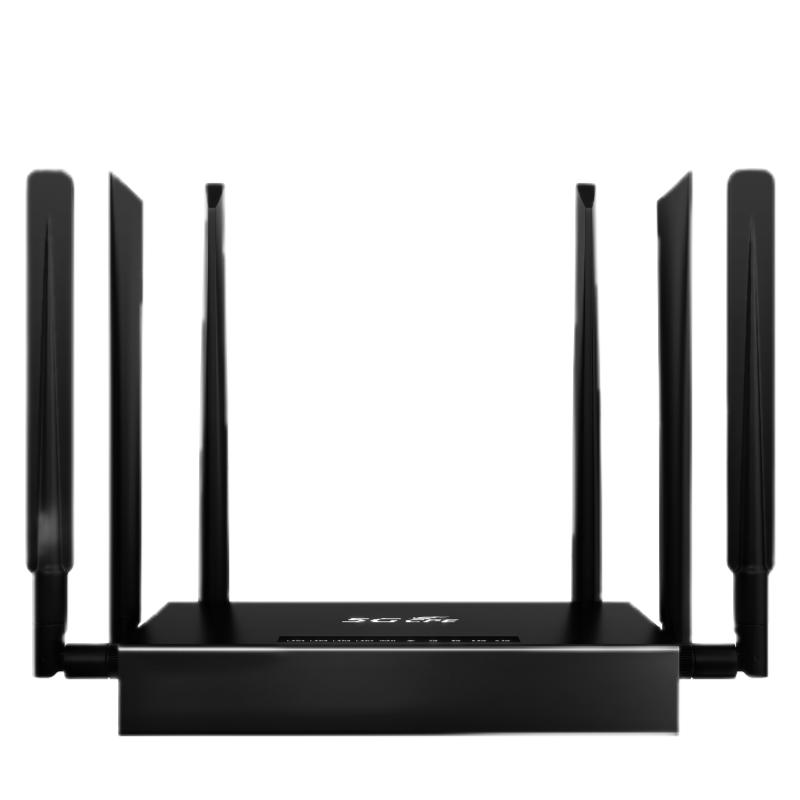

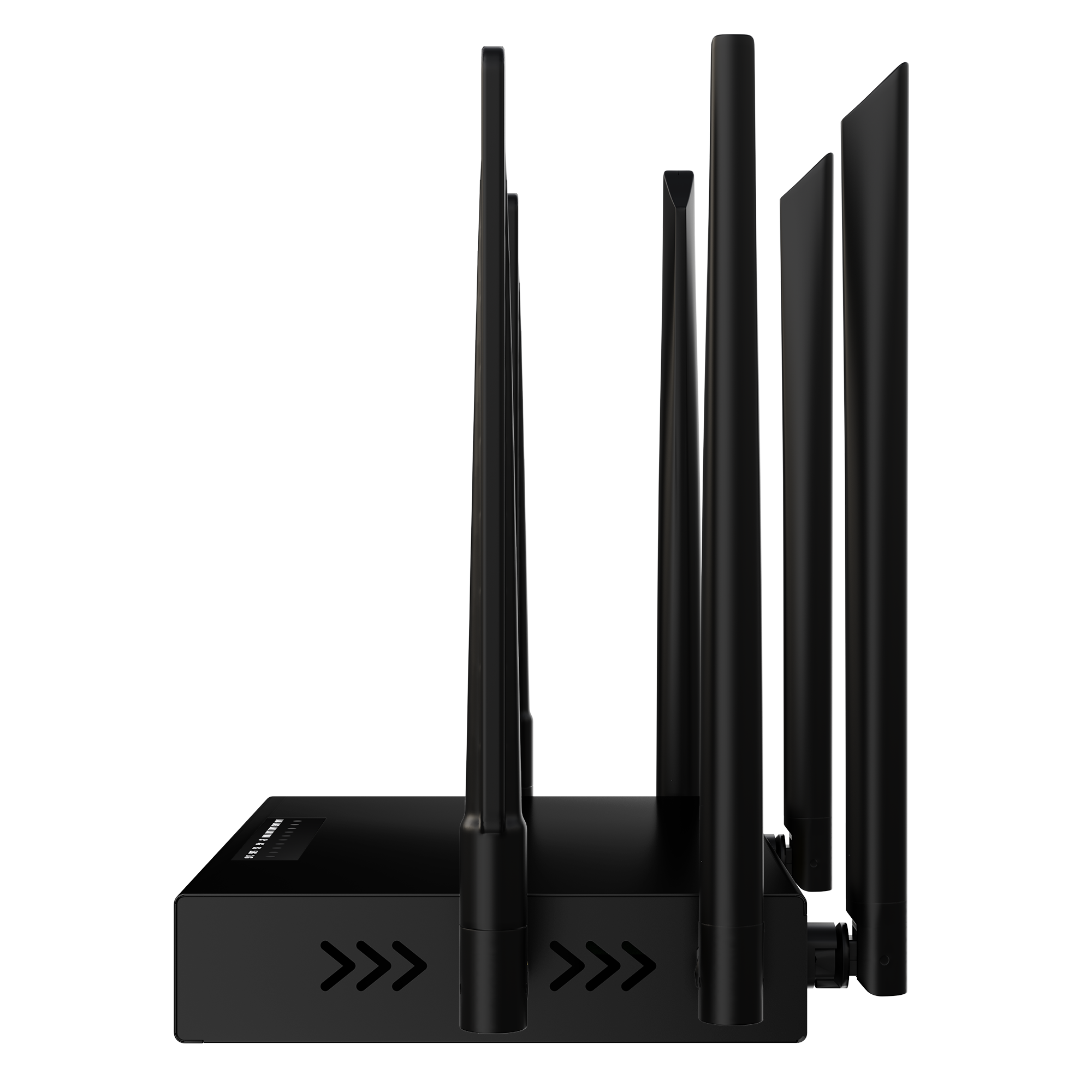

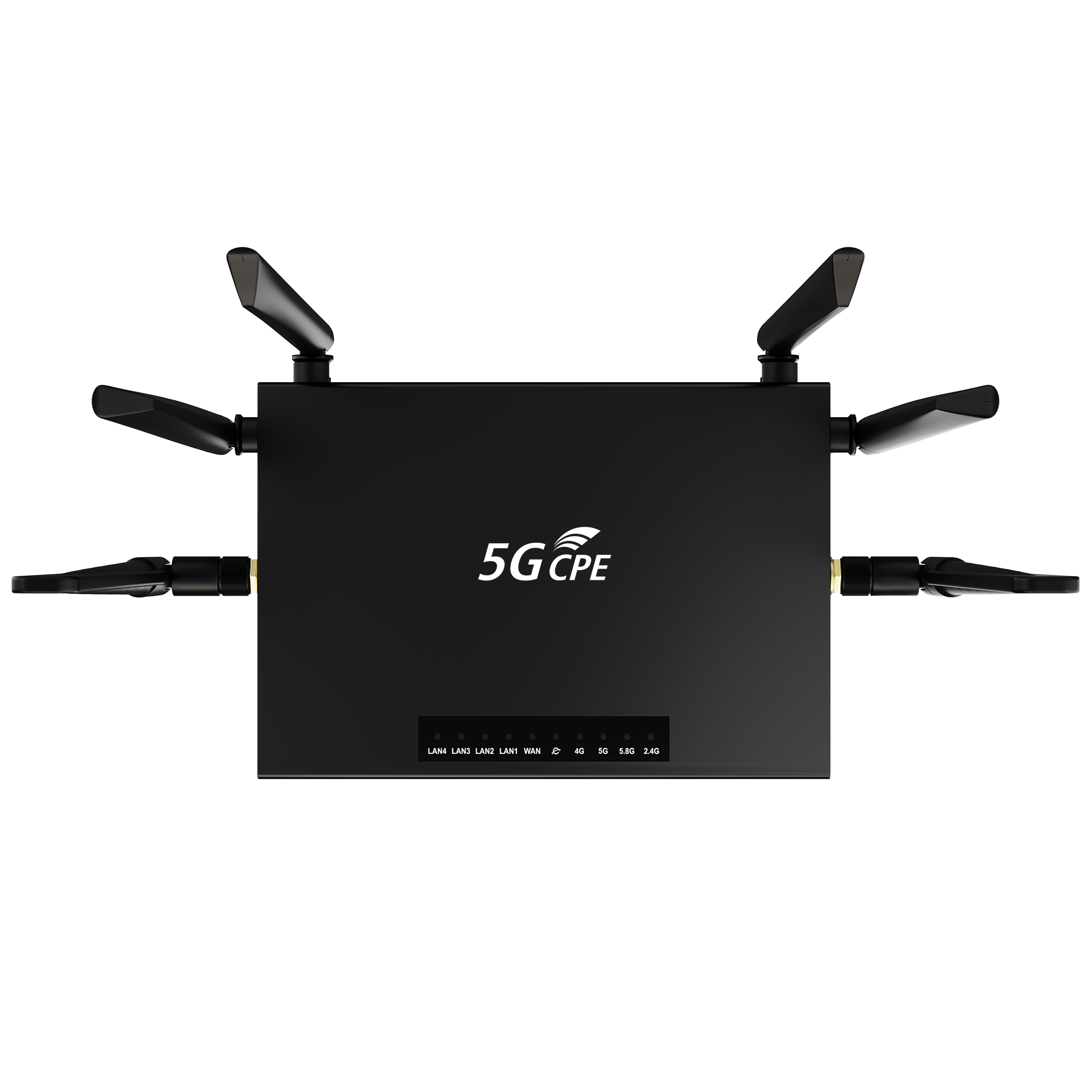

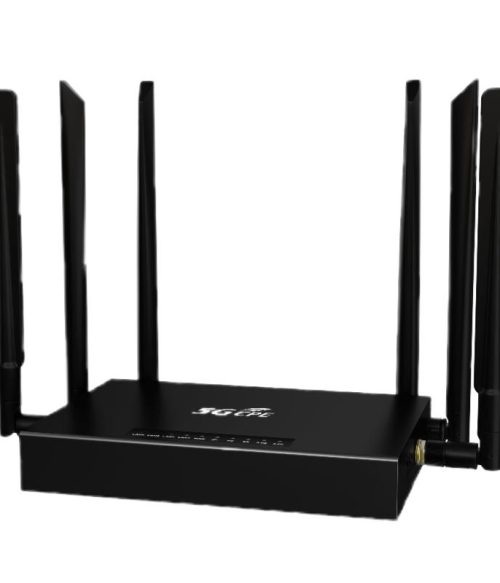

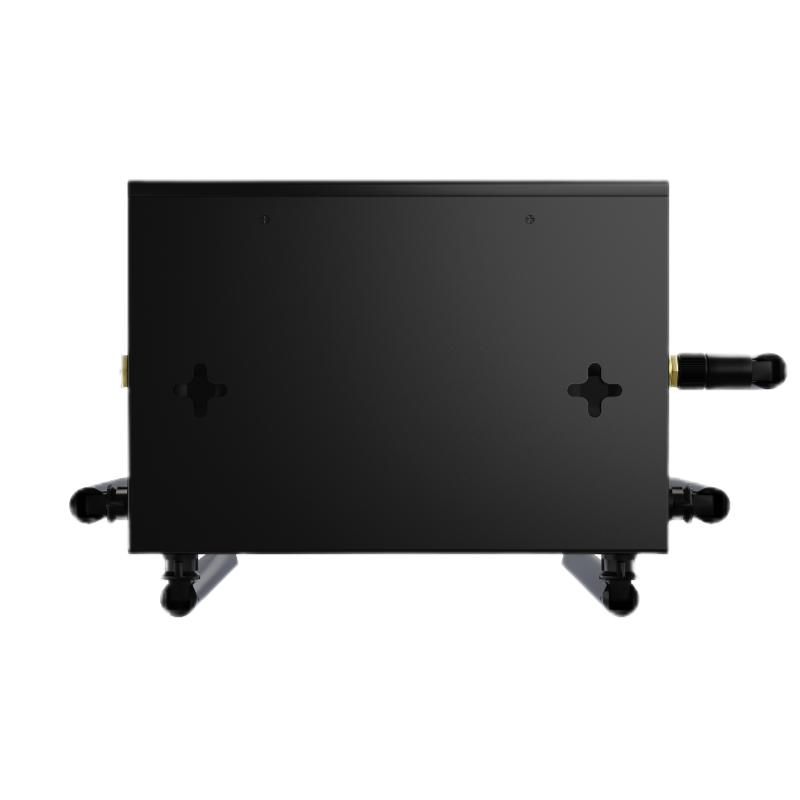

LINBLE T210 EA Version Wifi Router Router 5g Gigabit Wireless Industrial Remote Control Housing Router Supported OS Interface

Interface

Network

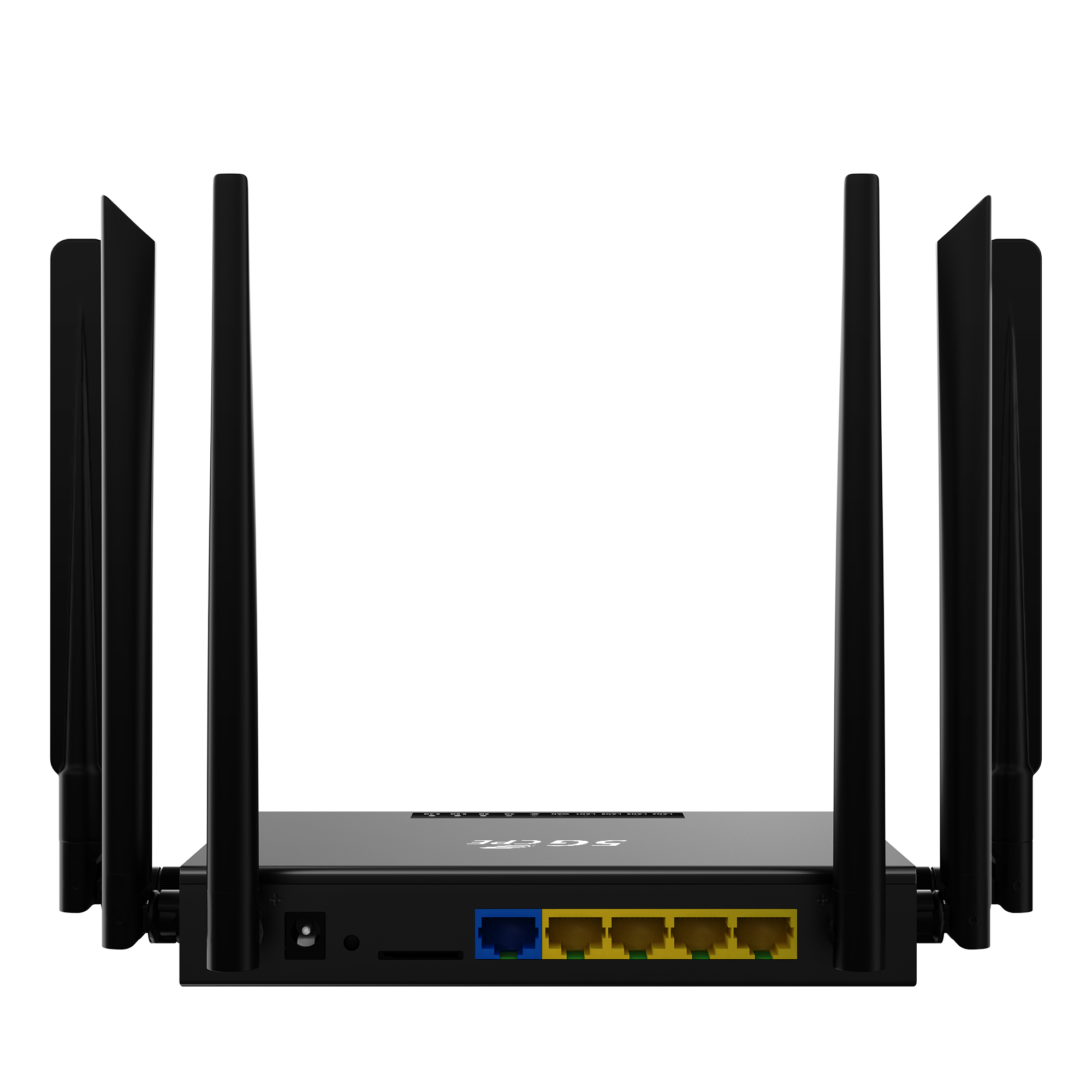

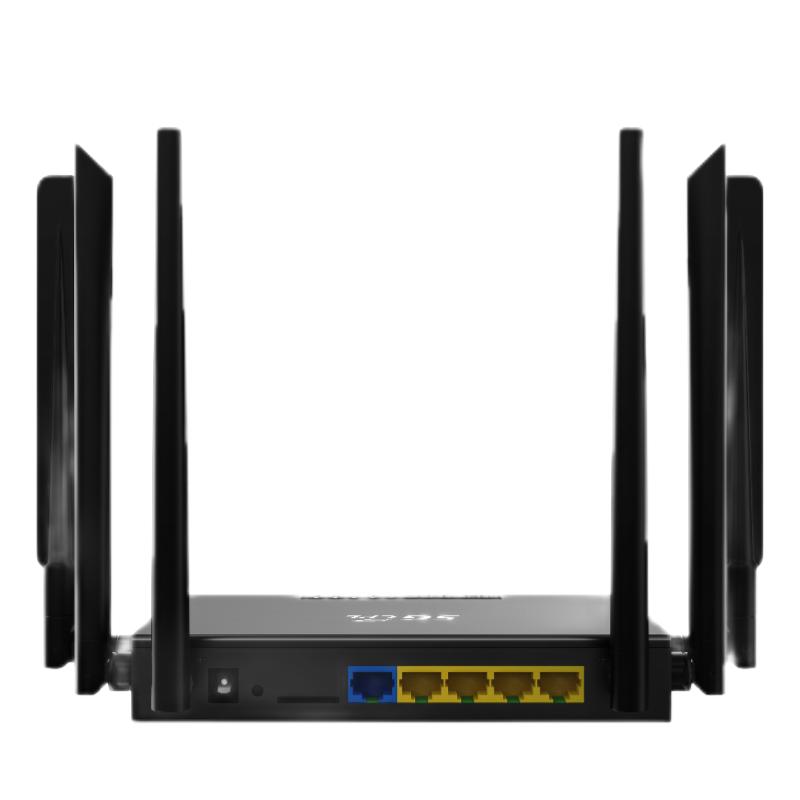

4*lan 1*wan

SIM

2FF sim

Button

reset

adapter

Input voltage:
12V-1.5A

Solution

Routing and WiFi chipset supplier

MTK

BASE

Routing and WiFi chipset model

MT7628A

Routing and WiFi processor info

IEEE 80 2.11 a/b/g/n/ac

DDR/SPI

64MBytes/16MBytes

WIFI

WiFi band

2400MHz-2483.5MHz 5170MHz-5835MHz

MIMO for WiFi

2.4G 5dbi X 2 5G 5dbi X 2

Max. transmitter power for WiFi

802.11a 14dBm±2dBm;
802.11g 18dBm±2dBm;
802.11n 16dBm±2dBm; 802.11ac 12dBm±2dBm;

Software

Language

Chinese&English

APN Setting

Supported

Device Settings

Supported

WIFI Settings

Supported

Routing Settings

Supported

Firewall Settings

Supported

LED

Supported

Technical standard

WiFi standard

802.11 a/b/g/n/ac

WiFi security

WPA/WPA2

OS

Windows XP

Windows Vista

Windows 7/8/10/11

MAC

Linux

Browser

IE (7.0 and later)

Firefox (3.0 and later)

Safari (4.0 and later)

Opera (10.0 and later)

Chrome (10.0 and later)

Envionment

Operating temperature

0 to 50° C

Storage temperature

-40 to 70° C

Humidity

5% to 95%

ID

Interface

MINI-PCIE

SIZE

30.7*50.95*5.52 mm

Solution

5G Module processor

UNISOC UDX710

5G Module Processor parameters

Dual-core ARM Cortex-A55 procesador 1.35GHz

5G/4G/3G

3GPP Release

5G NR (3GPP Release 15)

5G Modulation

DL 256QAM, UL 256QAM

4G Modulation

DL QPSK、16QAM、64QAM、256QAM, UL QPSK、16QAM、64QAM

3G Modulation

QPSK、16QAM、64QAM

Max. transmitter Power

WCDMA：+24 dBm (Power Class 3)
LTE：+23 dBm (Power Class 3)
NR：+23 dBm (Power Class 3)

Band

NR-FDD: n1, n3, n8, n28

NR-TDD: n41, n77, n78, n79

LTE-FDD: B1, B3, B5, B8

LTE-TDD: B34, B38, B39, B40, B41

WCDMA B1/B8

LTE Feature

Max： CA：DL 3CC，UL 2CC
FDD：DL Cat 12，UL Cat 13
TDD：DL Cat 12，UL Cat 13

Support 1.4/3/5/10/15/20 MHz bandwidth

DL support 2 × 2 MIMO

Max： DL 600 Mbps UL 150 Mbps

UMTS Feature

Support DC-HSDPA HSDPA HSUPA HSPA+ WCDMA

Max：DL 42.2 Mbps UL 11Mbps

5G NR Feature

SUB-6G SA
NR DL throughput Max：1.0 Gbps（@100 MHz，2RX，256QAM）
NR UL throughput Max：350 Mbps（@100 MHz，1TX，256QAM）
SUB-6G NSA
DL throughput Max：1.0 Gbps（@100 MHz，2RX，256QAM）
UL throughput Max：350 Mbps（@100 MHz，1TX，256QAM）

Envionment

Operating temperature

-20 to 60° C

Storage temperature

-40 to 85° C
