Product Details
1. There are 2 nano-SIM card slots and 1 eSIM card;
2. Support 5G:NR NSA 5G NR SA dual mode; 4G:LTE-TDD,LTE-FDD; Support ordinary broadband access to the Internet;
3. It supports 2.4G and 5G dual-band bands, and supports automatic adjustment of wireless transmission rates;
4. Provides 1 x 10/100M/1000M/2500M Ethernet (WAN/LAN) interface;
5. Provides two 10/100M/1000M adaptive Ethernet (LAN) interfaces with support for auto MDI/MDIX;
6. It supports 2.4G and 5G dual-band bands, and supports automatic adjustment of wireless transmission rates;
7. It supports 64/128-bit WEP encryption, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE encryption and security mechanisms, which can ensure the security of data transmitted in the wireless network;

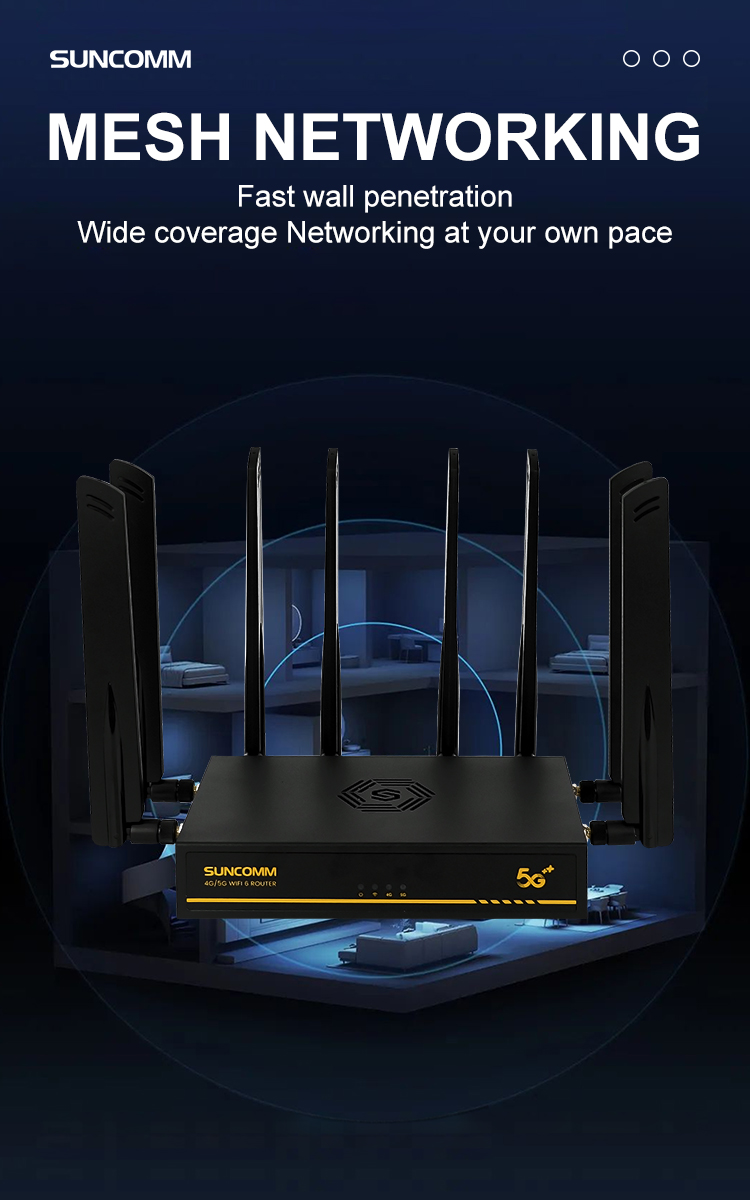

8. Support MESH, wired, wireless, hybrid networking;
9. Built-in Network Address Translation (NAT) function;
10. SUPPORT WEB SOFTWARE UPGRADES;
11. Support web management, easy installation wizard;
12. The trunk function is supported;
13. DMZ is supported;
14. Client management functions are supported;
15. Support wired network and mobile network switching;
2. Support 5G:NR NSA 5G NR SA dual mode; 4G:LTE-TDD,LTE-FDD; Support ordinary broadband access to the Internet;
3. It supports 2.4G and 5G dual-band bands, and supports automatic adjustment of wireless transmission rates;
4. Provides 1 x 10/100M/1000M/2500M Ethernet (WAN/LAN) interface;
5. Provides two 10/100M/1000M adaptive Ethernet (LAN) interfaces with support for auto MDI/MDIX;
6. It supports 2.4G and 5G dual-band bands, and supports automatic adjustment of wireless transmission rates;
7. It supports 64/128-bit WEP encryption, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE encryption and security mechanisms, which can ensure the security of data transmitted in the wireless network;
8. Support MESH, wired, wireless, hybrid networking;
9. Built-in Network Address Translation (NAT) function;
10. SUPPORT WEB SOFTWARE UPGRADES;
11. Support web management, easy installation wizard;
12. The trunk function is supported;
13. DMZ is supported;
14. Client management functions are supported;
15. Support wired network and mobile network switching;
|
CPU
|

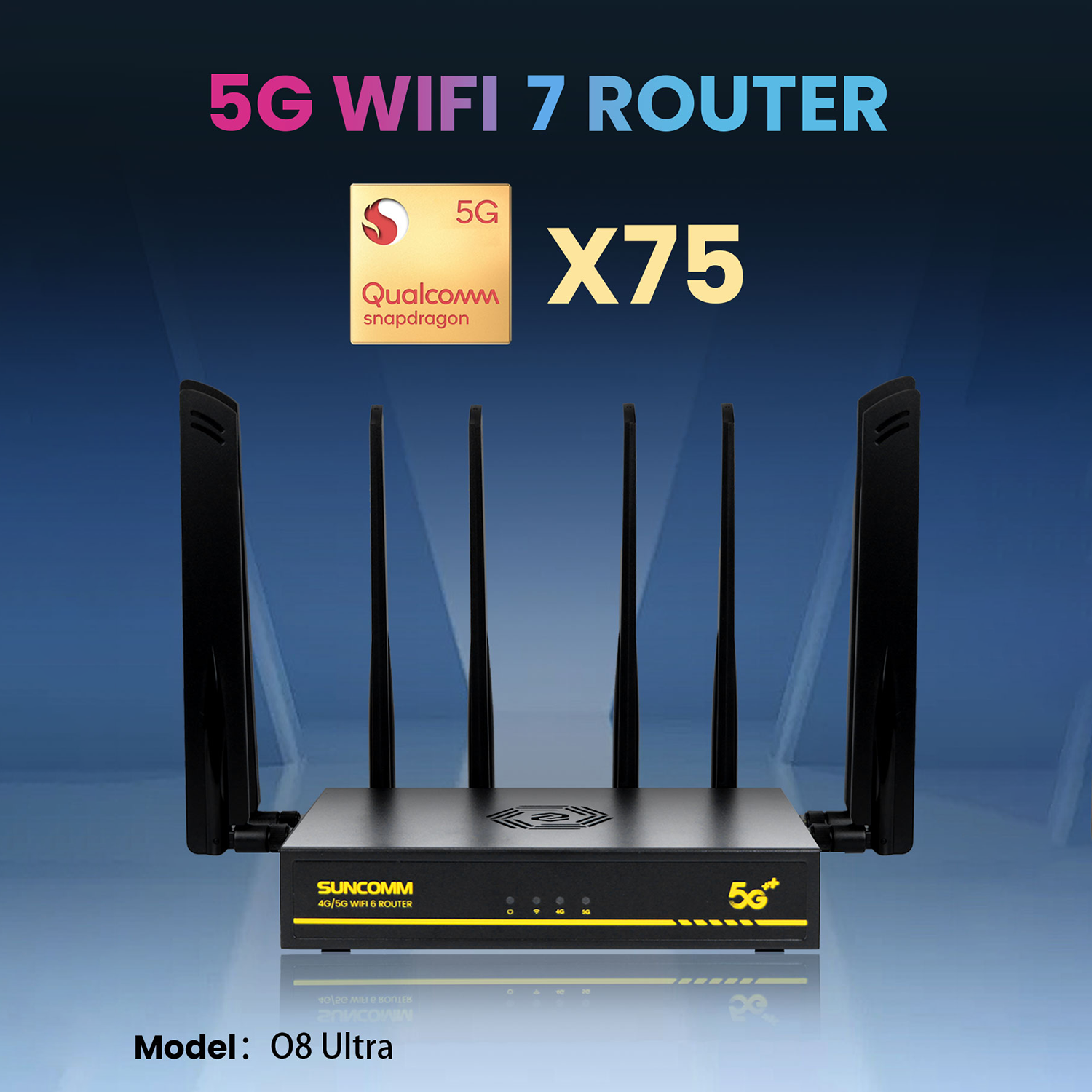

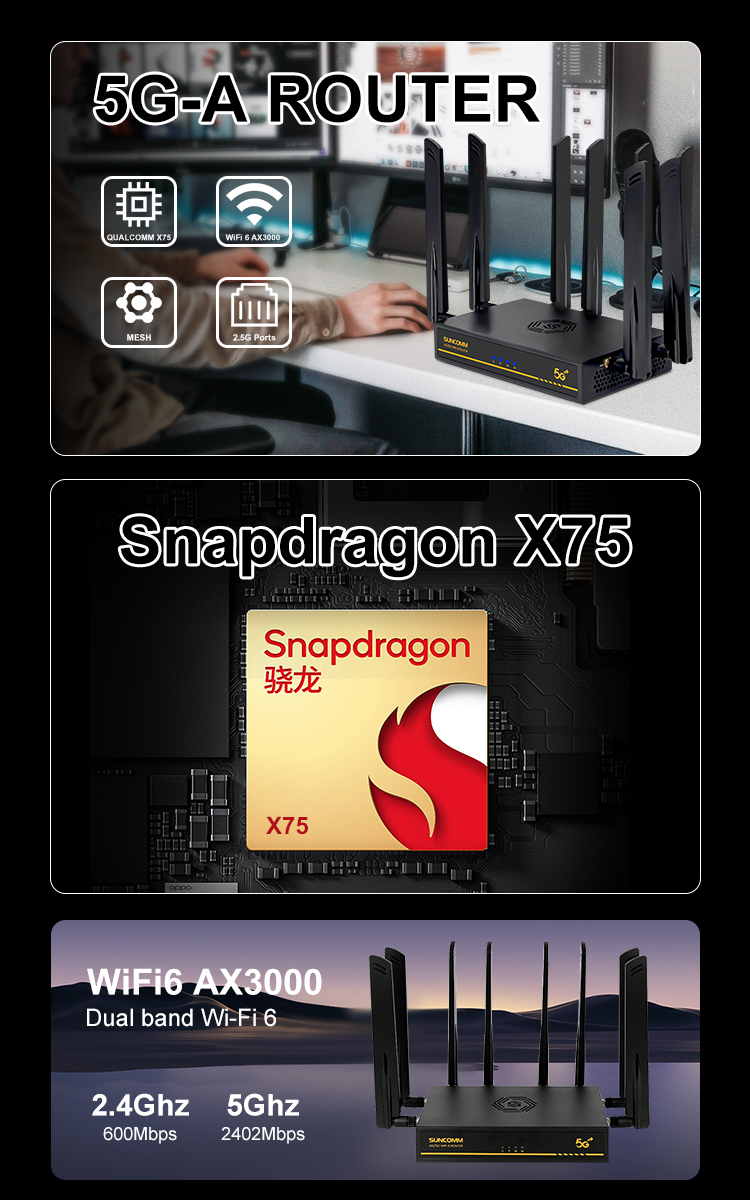

Qualcomm X75+MT7981BA+MT7976CN+MT7531AE（Dual-core A53 1.3GHz）
|
|
WiFi Frequency
|
2.4G / 5G Downlink Cat 19/ Uplink Cat 18
|
|
Storage
|
512MB DDR3 + 128MB SPI NAND FLASH
|
|
WiFi Standard
|
IEEE 802.11b、g、a、n、ac、ax
IEEE 802.3、u、x |
|
WiFi
|

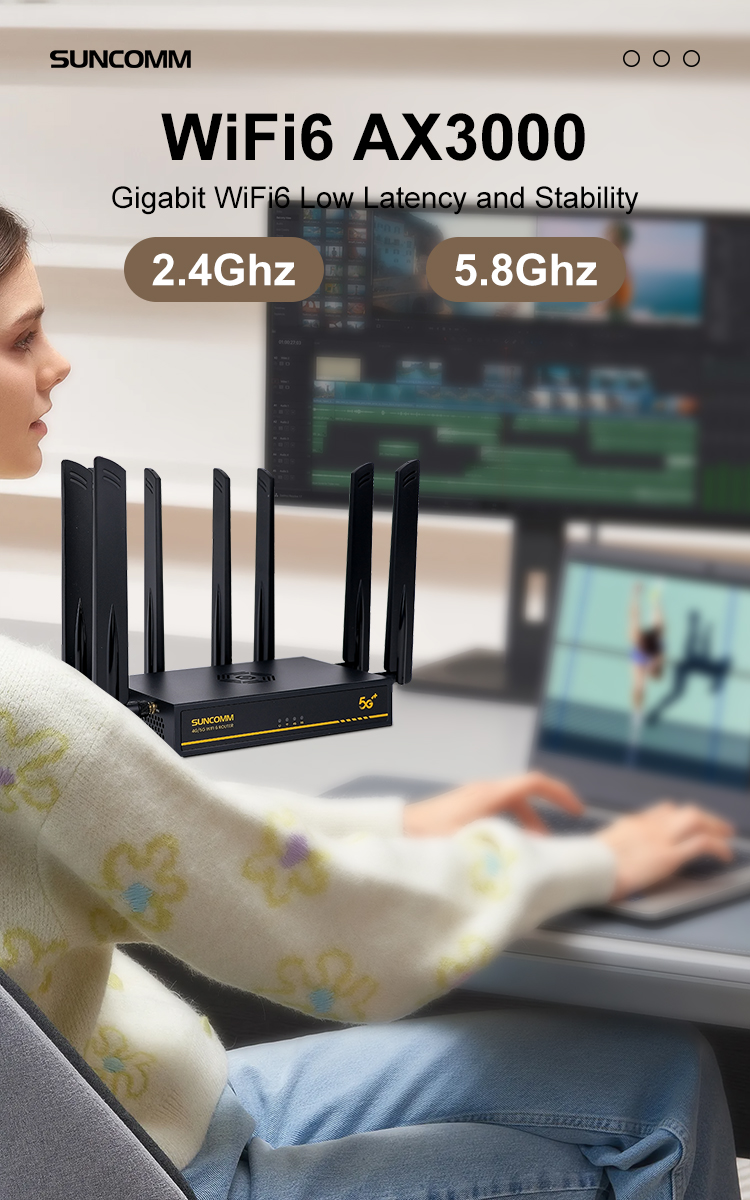

2.4GHz 2TR :600Mbps , 5GHz 2T2R :2402Mbps
|
|
5G NR
|
3GPP Release 16 NSA/SA operation, Sub-6 GHz
|
|
5G Network Mode
|
NSA/SA
|
|
5G/4G Data Rate |
5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps；UP 200 Mbps |
|
5G Frequency Bands |
5G NR NSA / SA Sub-6
n1/2/3/5/7/8/12/13/14/18/20/25/26/29/30/34/38/39/40/41/46/53/66/67/68/70/71/75/76/77/78/79/90/91/91/92/93/94 mmWave n257/258/260/261 LTE FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/70/71/75/76 LTE TDD B34/38/39/40/41/48/46/53 WCDMA B1/2/3/4/5/6/8/9/19 |
|
Working mode
|
AP/Router/Repeater Mode
|
|
Wireless security
|
Wireless MAC address filtering
64/128 bit WEP encryption WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE WPS（PBC） |
|
Other features
|
Wireless host status display
Wireless site scanning Seamless roaming between nodes Seamless roaming between bands |
|

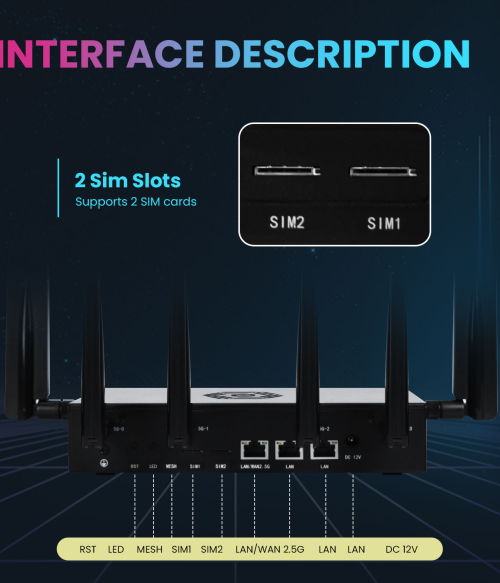

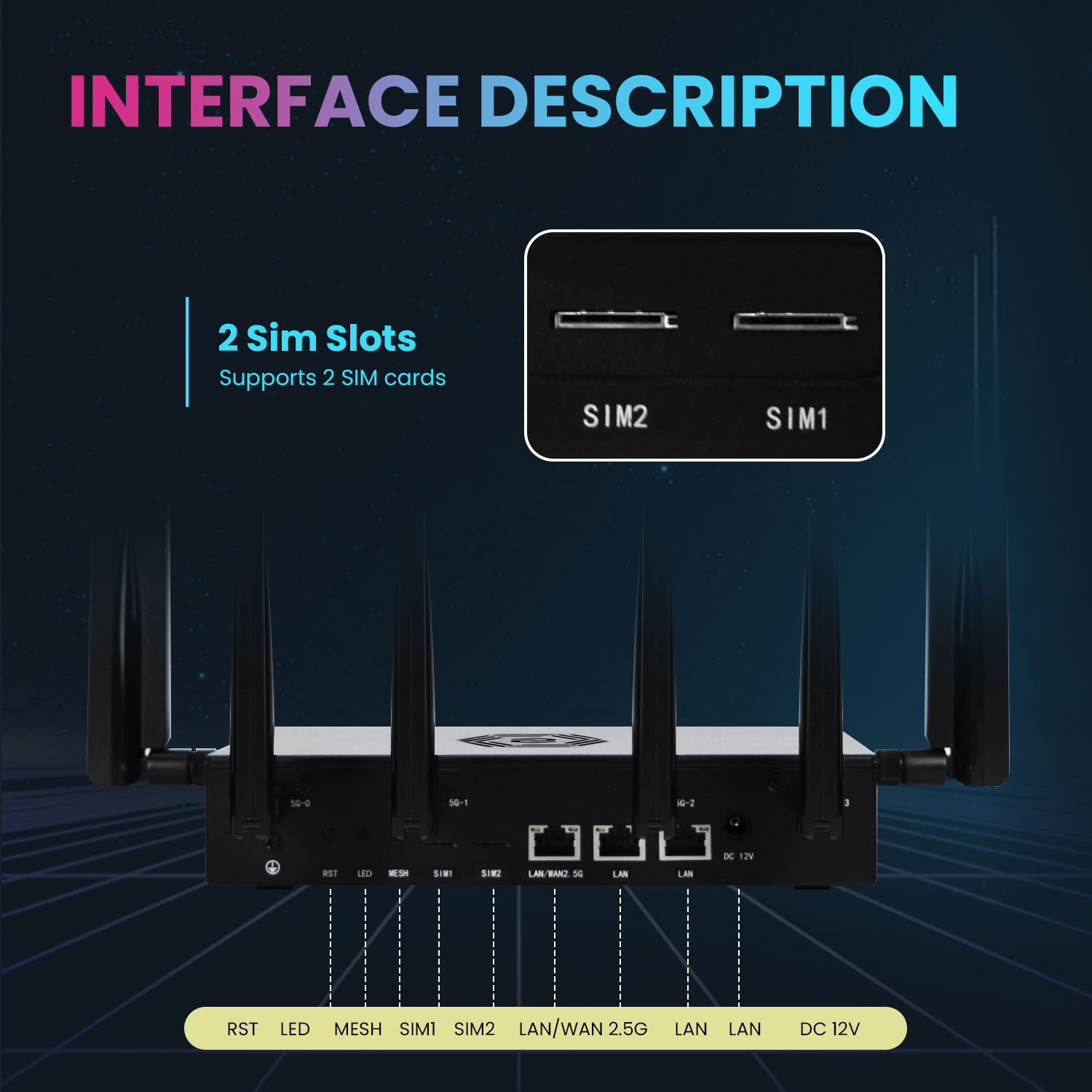

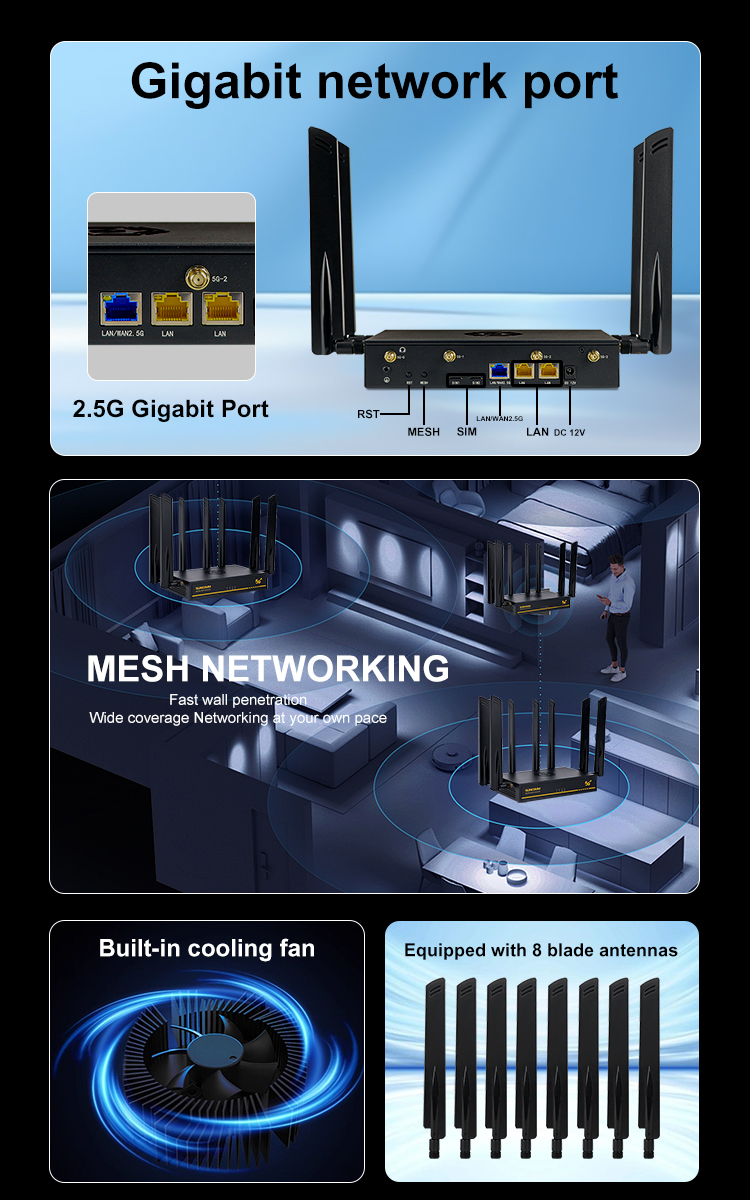

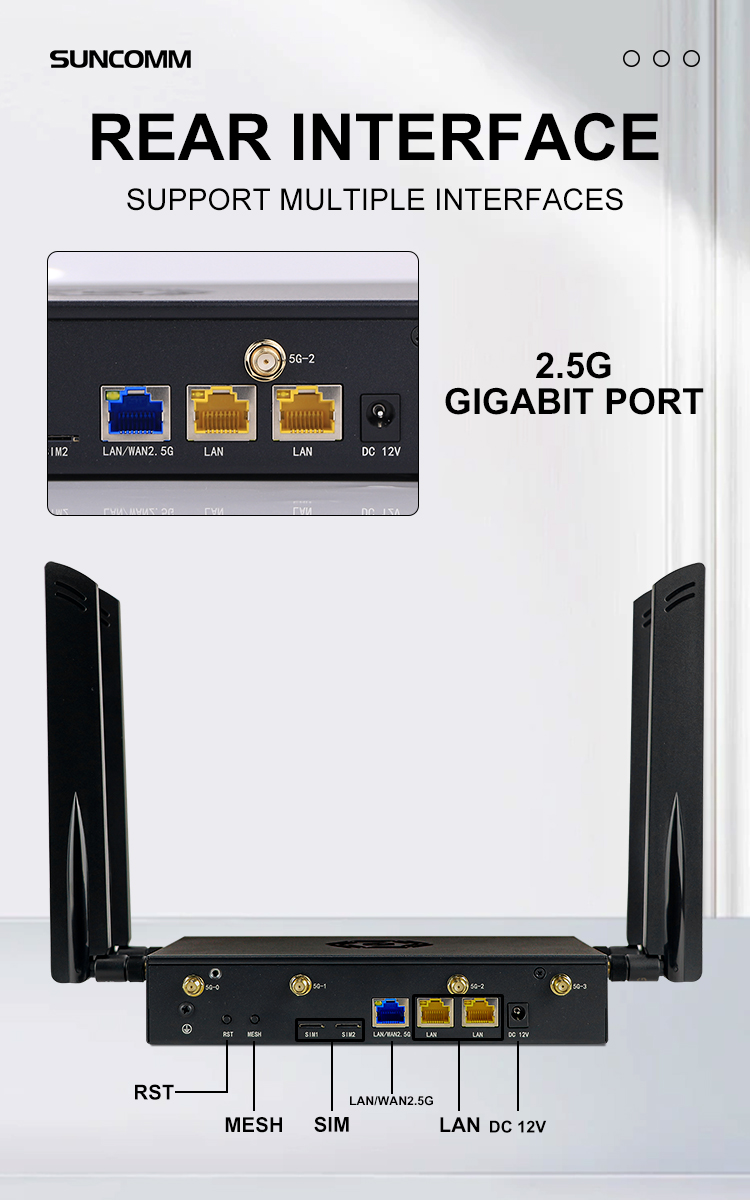

Interface
|
1 x 10/100M/1000M WAN port, support Auto MDI/MDIX
2 x 10/100M/1000M LAN ports, support Auto MDI/MDIX 2 Nano SIM card slots, 1 eSIM card (customized) |
|
WiFi settings
|
WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment).
Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) |
|
Button
|
Mesh (press 1 second).
Reset (press and hold for 5 seconds). |
|
LED Indicator
|
5G, 4G, WIFI signal indicator, power indicator
|
|
Power supply
|
DC 12V/2A
|
|
Network settings
|
Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration
FAILOVER switches: PPPOE, DHCP, and static 4G/5G band locking |
|
Wifi settings
|
Wifi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA, Mesh
|
|
SMS feature
|
SMS sending and receiving, SMS center settings, USSD
|
|
Guest network
|
Configure the SSID, rate limit, and startup time limit of the guest network
|
|
Parental controls
|
Online device display, online time, restricted Internet time period, URL filtering configuration
|
|
Advanced settings
|
Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings
|
|
System settings
|
System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management,Change IMEI,VPN
|
|
Use environment |
Operating temperature: -20°C to 50°C
Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 95% RH non-condensing |
