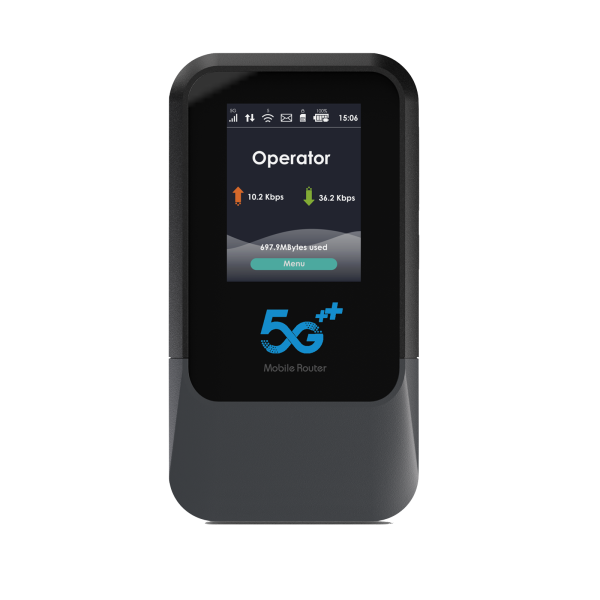

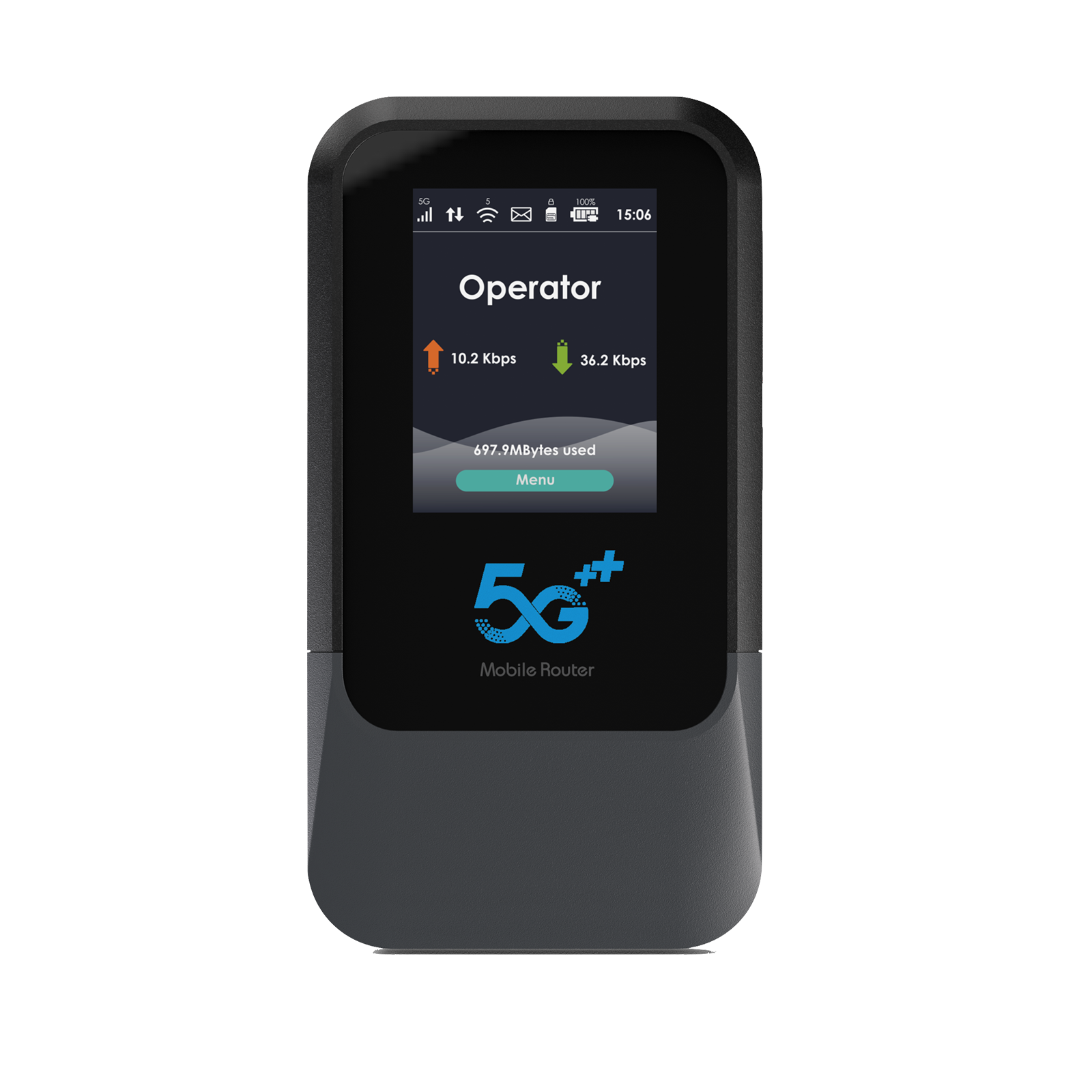

Hotspot 5G NR Portable Router Type-C USB 3.0 Nano-SIM Card Slot 11AX 900Mbps APN Management for Camping Sub-6 WEP QoS

Chipset

UNISOC IVY510+EA6621

LTE

3GPP Release 15

Band Support

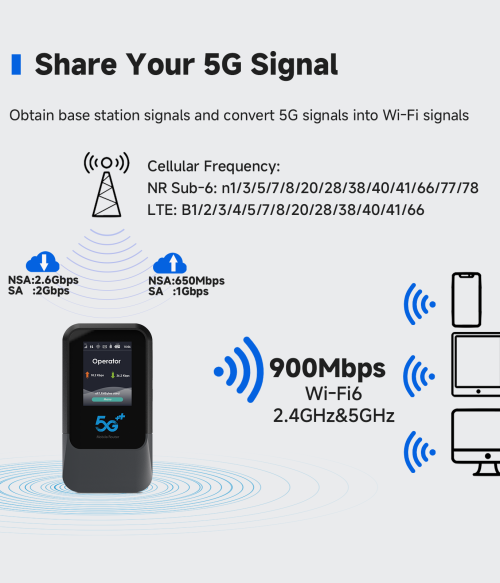

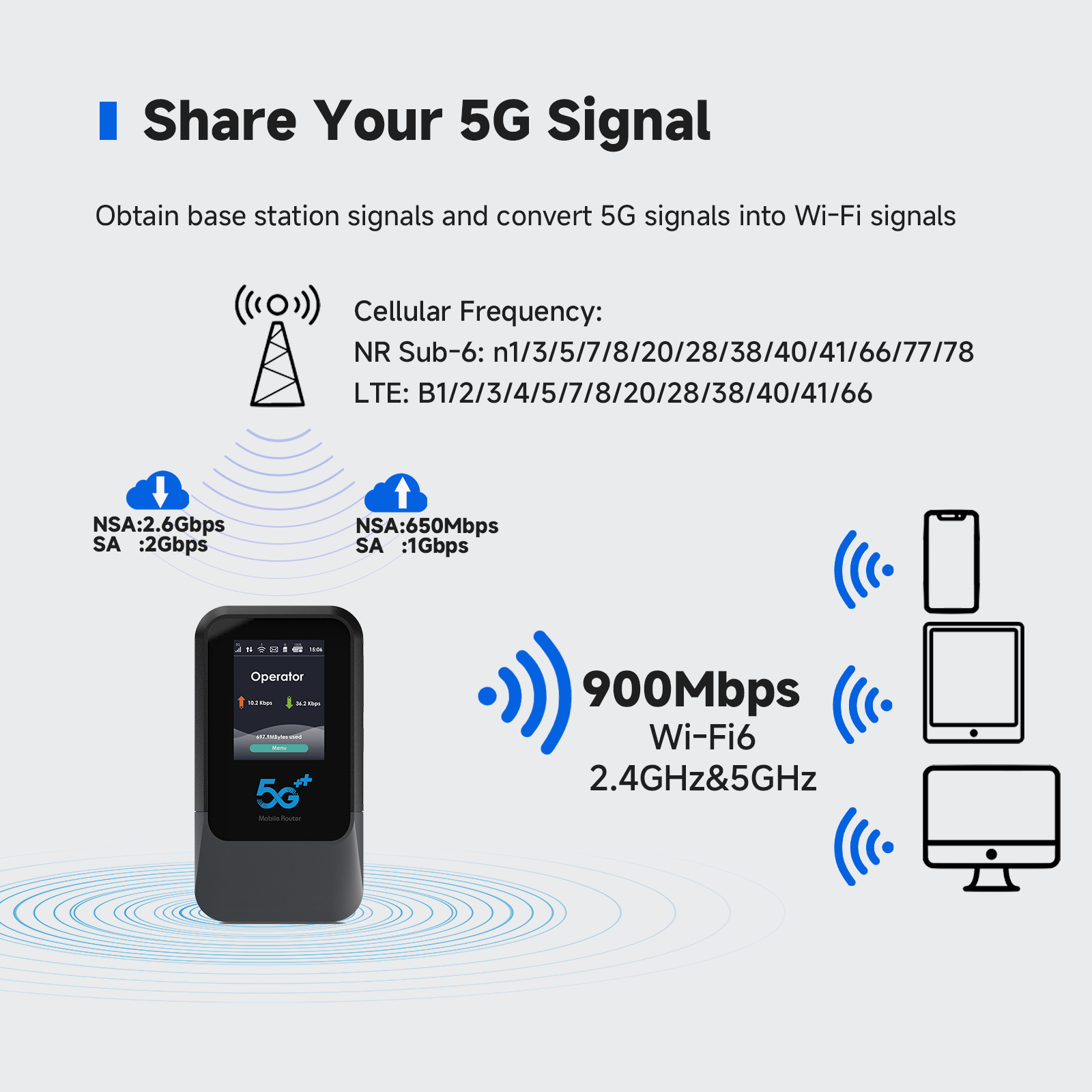

NR Sub6: n1/3/5/7/8/20/28/38/40/41/66/77/78
LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66

Interface

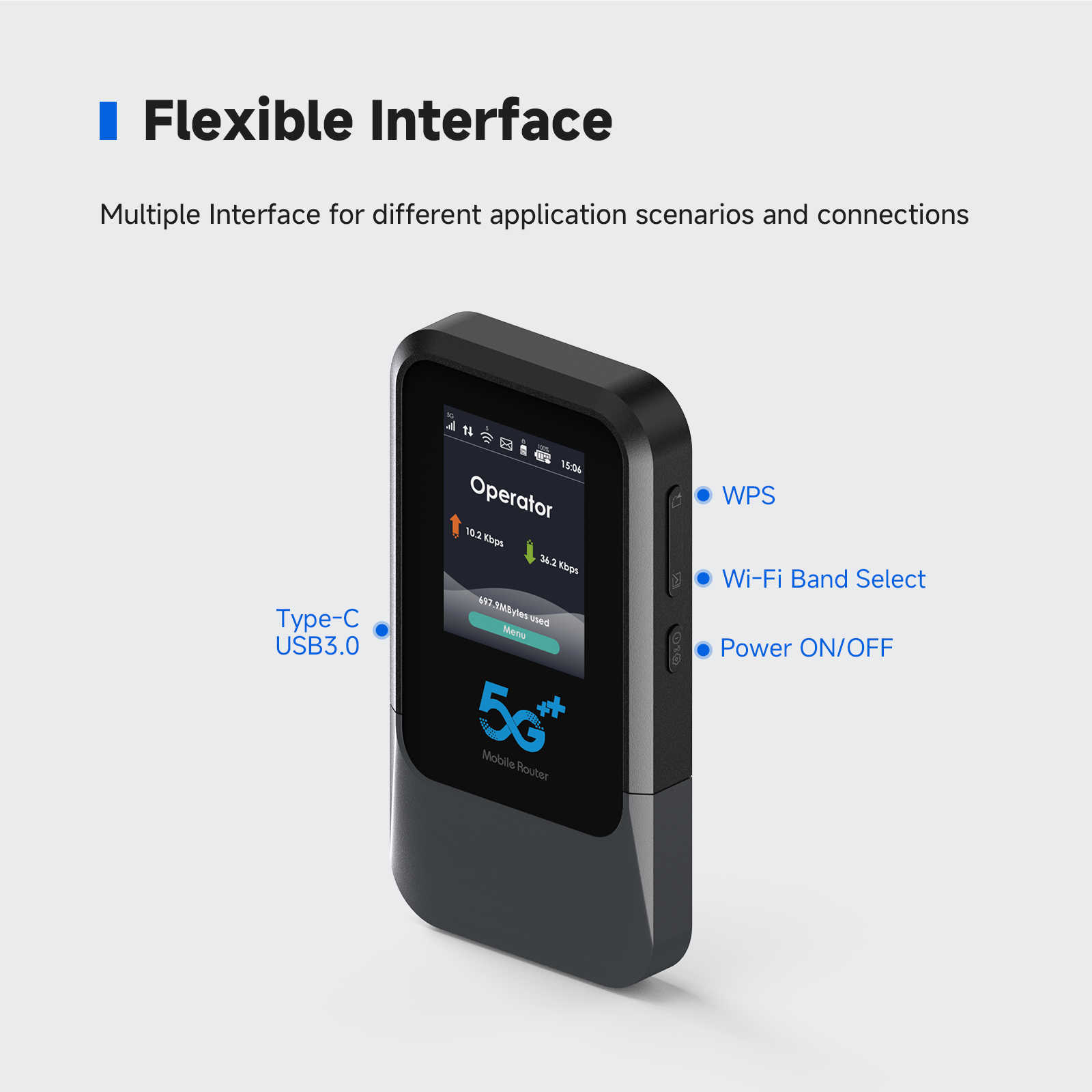

1x type-c USB 2.0/3.0

LCD

1.77inch

Button

1x Power, 1x WPS, 1x Wi-Fi Band Select, 1x Reset(Hidden)

Battery

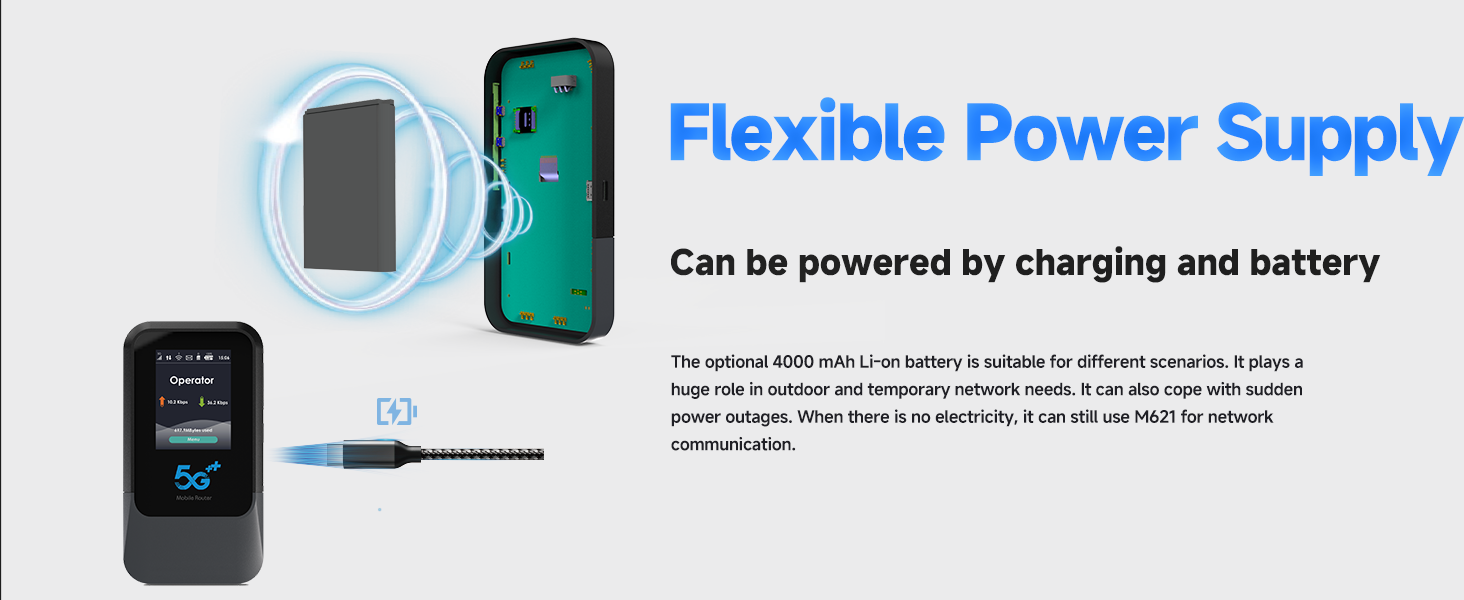

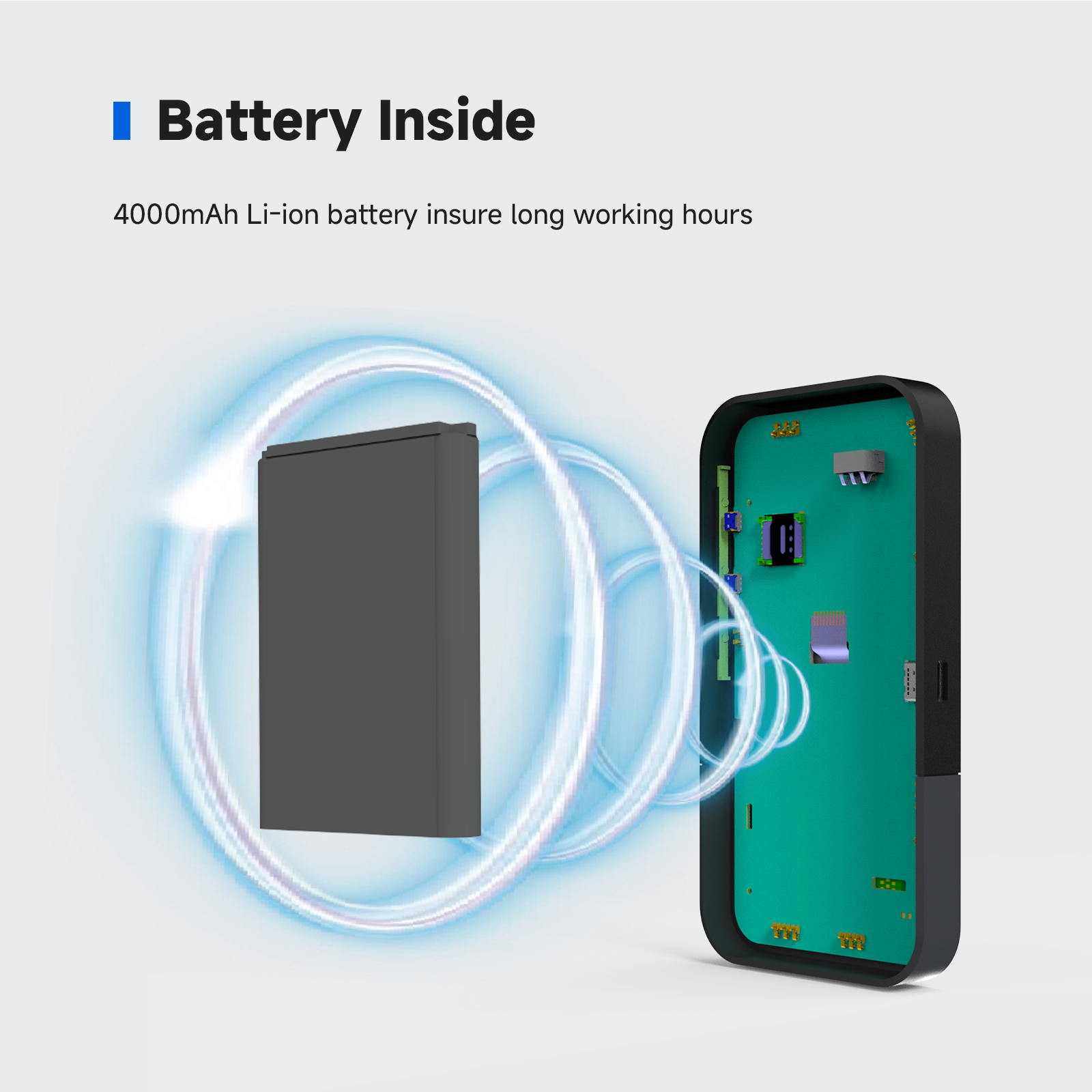

Li-on 4000mah battery

WLAN

802.11 a/b/g/n/ax, 1X1, 2.4GHz or 5.8GHz, dual band selectable
802.11 a/b/g/n/ac/ax 2.4 GHz, data rate up to of 289 Mbps, 1×1
802.11 a/n/ac/ax 5 GHz, data rate up to of 600 Mbps, 1×1

WLAN Feature

Wireless Protected Setup (WPS)
WMM
Auto Channel Select (ACS)
WPA2-PSK, WPA-PSK /WPA2-PSK, WPA3-SAE, WPA2-PSK /WPA3-SAE with AES
Mixed with TKIP & AES security type
Hidden SSID
Allowed connected user #: 32

Network

Support IPv4/IPv6 dual stack(NDP IPv6)
DHCP server
ICMP supported
Virtual Private Network (VPN) pass through
Support NAT/NAPT
Support DMZ
Support port forwarding/triggering

Routing

Support Dynamic DNS for first APN

Firewall

Firewall can be enabled or disabled via GUI
Support SPI
Application-Level Firewall
Filters LAN MAC address
Filters LAN IP address

Management

Support Local device management and firmware upgrade via Web GUI
APN management
PIN/PUK management
Network selection
Network preference
Operating frequency band selection
Support Mobile Apps(iOS and Android)*
FOTA

Physical

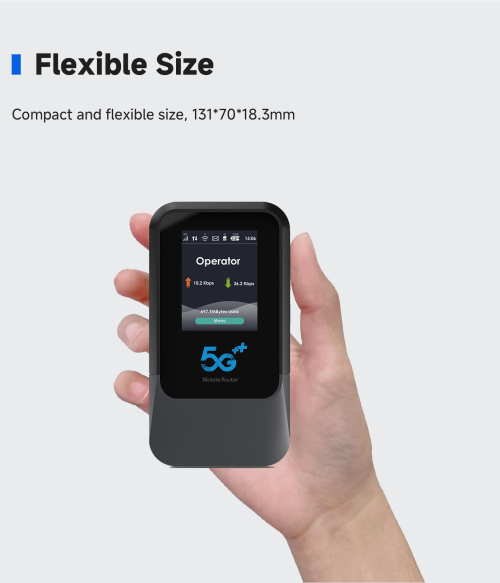

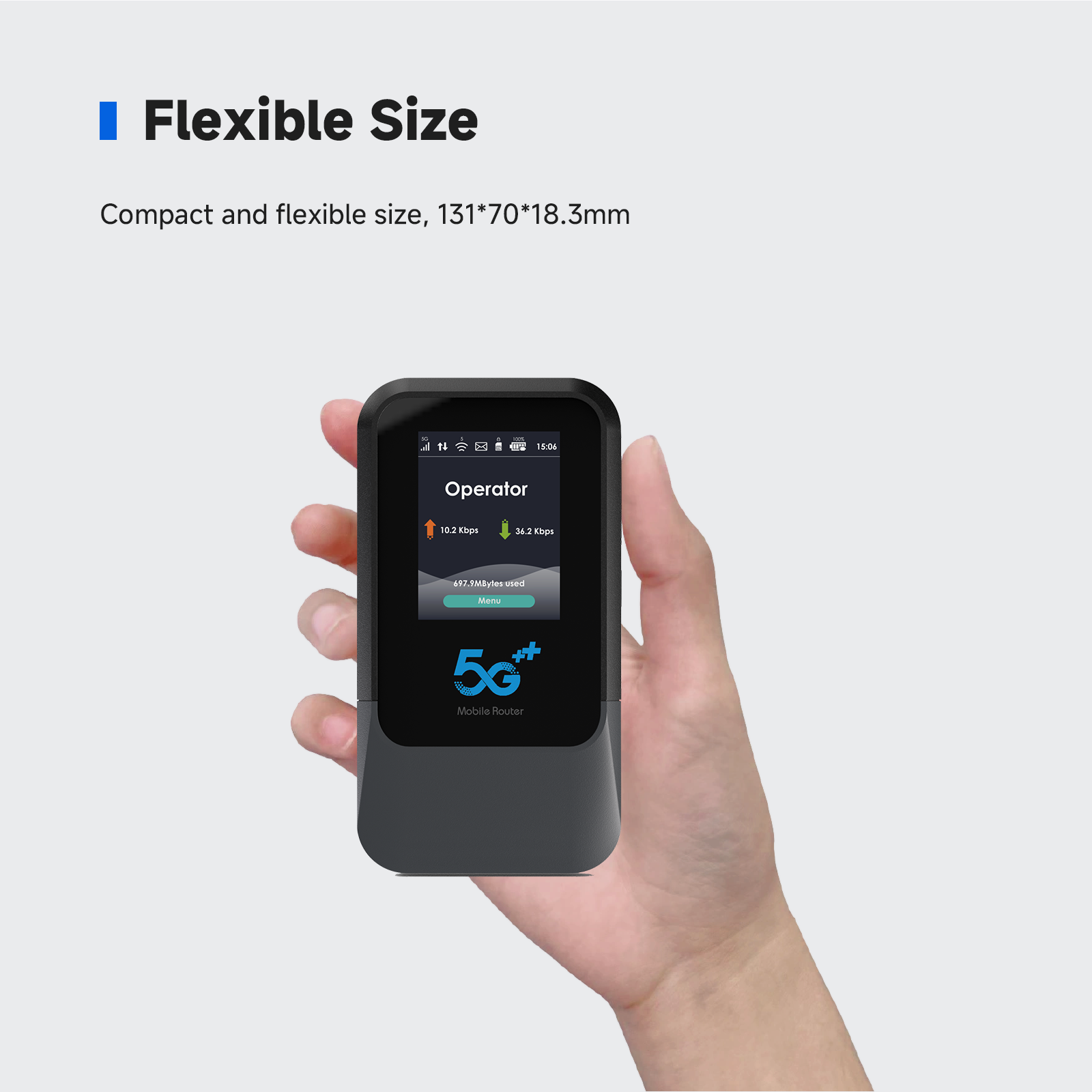

Dimensions(WxDxH): 138*72.4*17mm
Weight: ~300g

Environment

Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 5% to 95% (Non-condensing)
Storage Environment
Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 95% (Non-condensing)
